LP3S-A71K3223

OTTLP3S_A71K3223
Heilind Number:OTTLP3S-A71K3223
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-A71K3223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

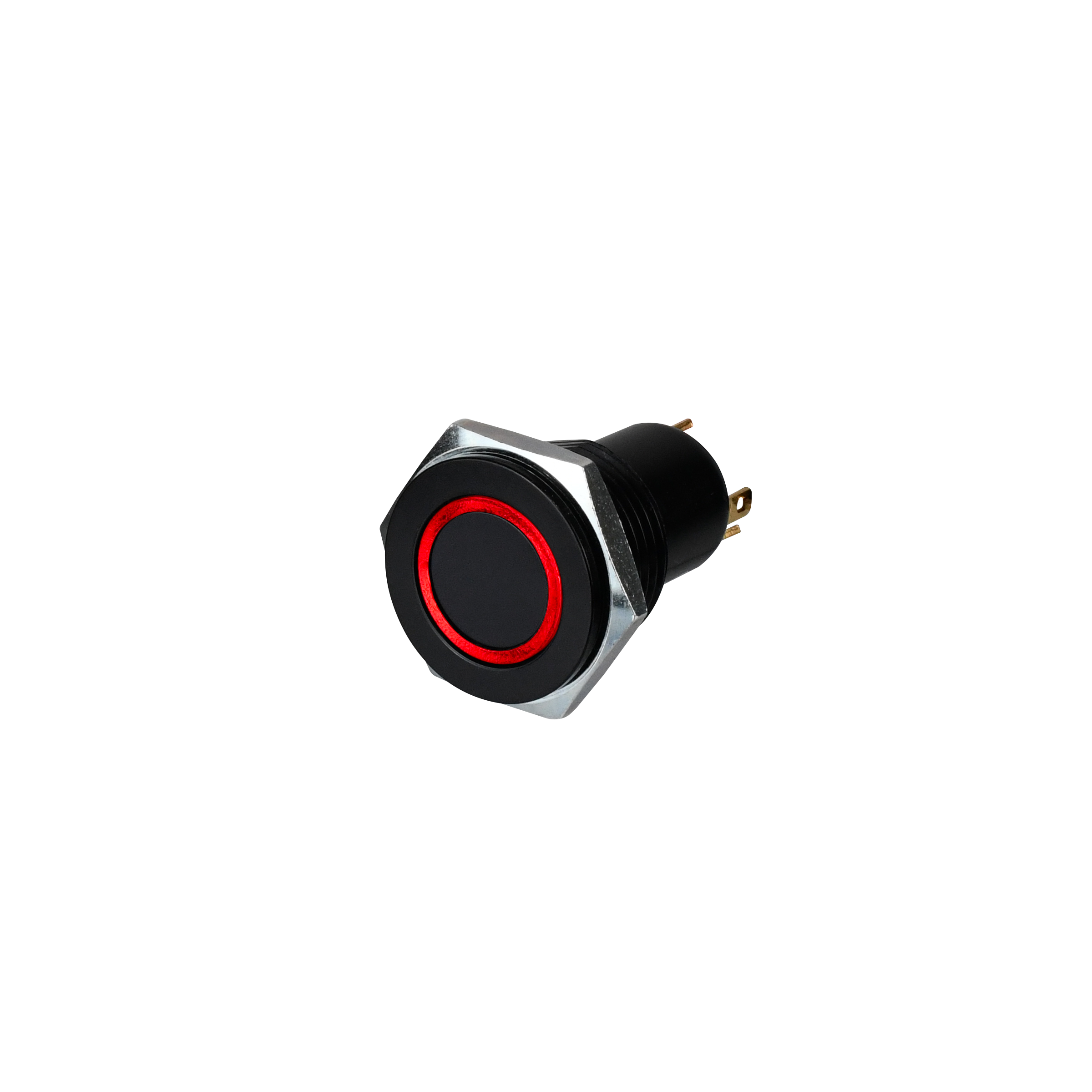

Shorter Behind Panel, Illuminated, Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-A71K3223
Series:LP3S
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Low Profile Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.091 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP3S-A71K3223

Detailed Description

Introducing the LP3S series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek design with a Black cap and case. This high-performance switch is sealed with an IP6K8S rating, making it ideal for use in harsh environments. The Button (Low Profile Flat) actuator, constructed of durable Aluminum, offers a comfortable and responsive touch. With a current rating of 5A and a contact material of Silver-plated Brass, this switch ensures reliable performance. The Off-(On) switch function, along with the SPST-NO contact configuration, allows for easy operation. Illuminated with a vibrant Red color and rated for 24V, this switch provides clear visual feedback. Panel mount installation, termination via solder, and a wide operating temperature range of -55°C to 85°C make it versatile for various applications. Trust in the LP3S-A71K3223 for durability, with a rating of 25,000 cycles.
