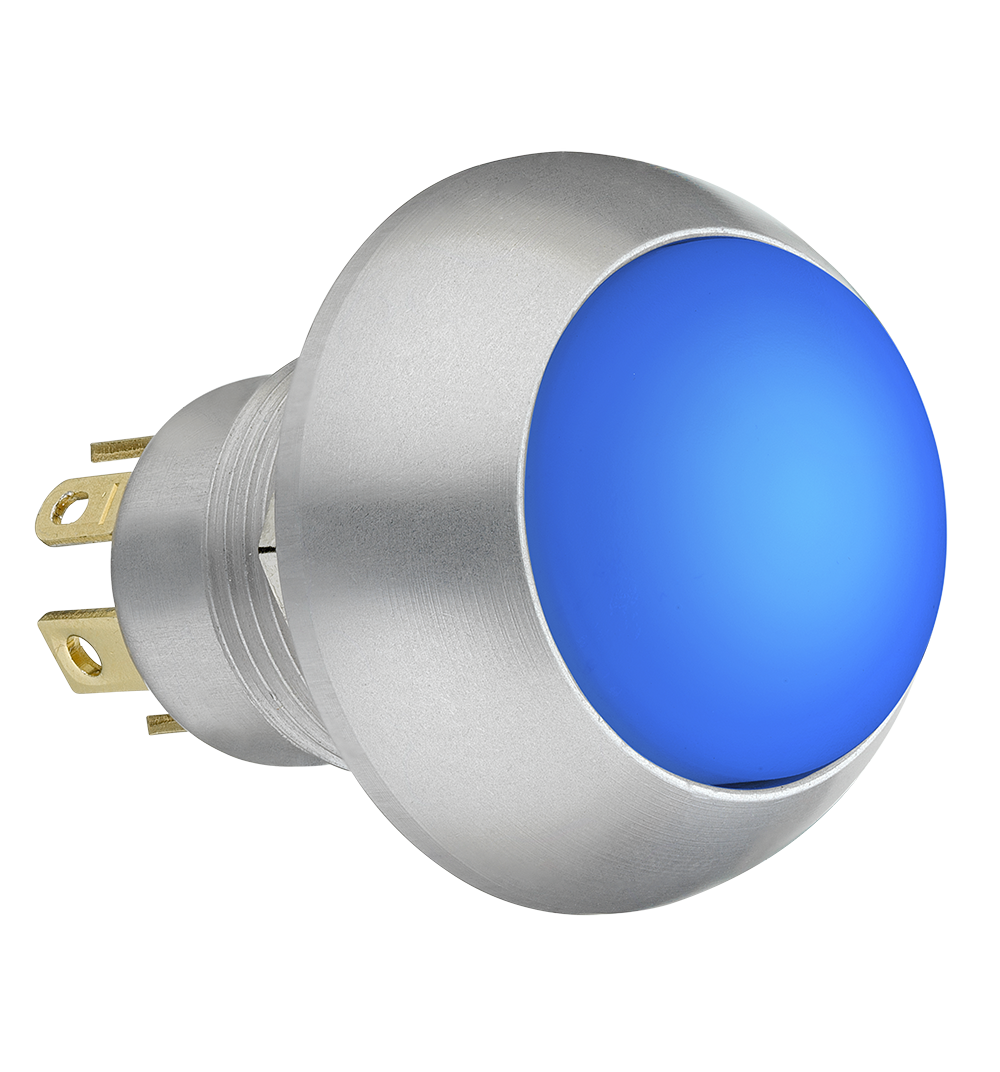

LP3S-F3A321R

OTTLP3S_F3A321R
Heilind Number:OTTLP3S-F3A321R
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-F3A321R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-F3A321R
Series:LP3S
Cap Color:Red
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Dome (Flush)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.491 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-F3A321R

Detailed Description

Introducing the LP3S Series Illuminated Pushbutton Switch with SKU LP3S-F3A321R, engineered for reliable performance in demanding environments. Featuring a sleek silver case with a vibrant red cap, this switch offers a modern aesthetic. The durable aluminum housing and IP6K8S rating ensure protection against dust and water ingress, making it ideal for industrial applications. The momentary SPDT configuration and gold-plated brass contacts provide a high level of electrical reliability, while the 5A current rating and 115VAC/28VDC voltage ratings allow for versatile use. The dome-shaped actuator with flush mounting design offers ergonomic operation, with an illumination voltage of 2V for enhanced visibility in low-light conditions. With a 25,000 cycle durability rating and a wide operating temperature range from -55°C to 85°C, this switch is built to withstand the harshest conditions. Upgrade your control panel with the LP3S Series Illuminated Pushbutton Switch for seamless and efficient operation.
