LP3S-F3M321A

OTTLP3S_F3M321A
Heilind Number:OTTLP3S-F3M321A
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-F3M321A
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

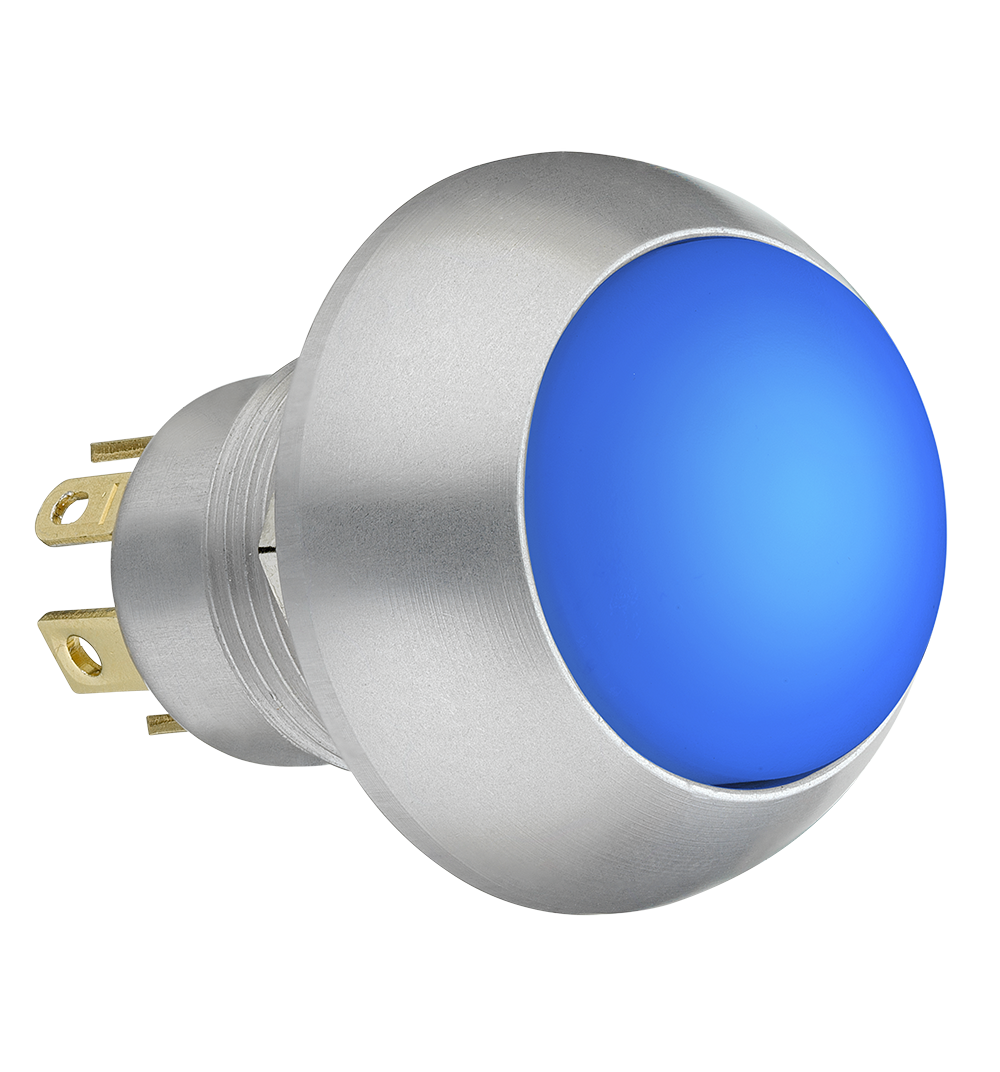

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-F3M321A
Series:LP3S
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Dome (Flush)
Case Color:Silver
Actuator Material:Thermoplastic
Termination Type:Quick Connect
Actuator Shape:Round
Cap Color:Amber
Actuator Length:.491 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:24 V
SKU:OTTLP3S-F3M321A

Detailed Description

The LP3S Series Amber Illuminated Sealed Pushbutton Switch, SKU LP3S-F3M321A, is a high-performance component designed for reliable operation in demanding environments. Featuring a durable thermoplastic dome actuator with a flush round shape, this switch offers a tactile and visually appealing user experience. With an IP6K8S rating, it provides superior protection against dust and water ingress, making it suitable for use in harsh industrial settings. The gold-plated brass contacts ensure excellent conductivity and longevity, while the aluminum housing guarantees robustness. Operating at a maximum temperature of 85°C and a minimum of -55°C, this switch is suitable for a wide range of applications. CE and RoHS compliant, it meets international standards for quality and environmental responsibility. Ideal for panel mounting, the LP3S switch is a versatile solution for control and signaling tasks.
