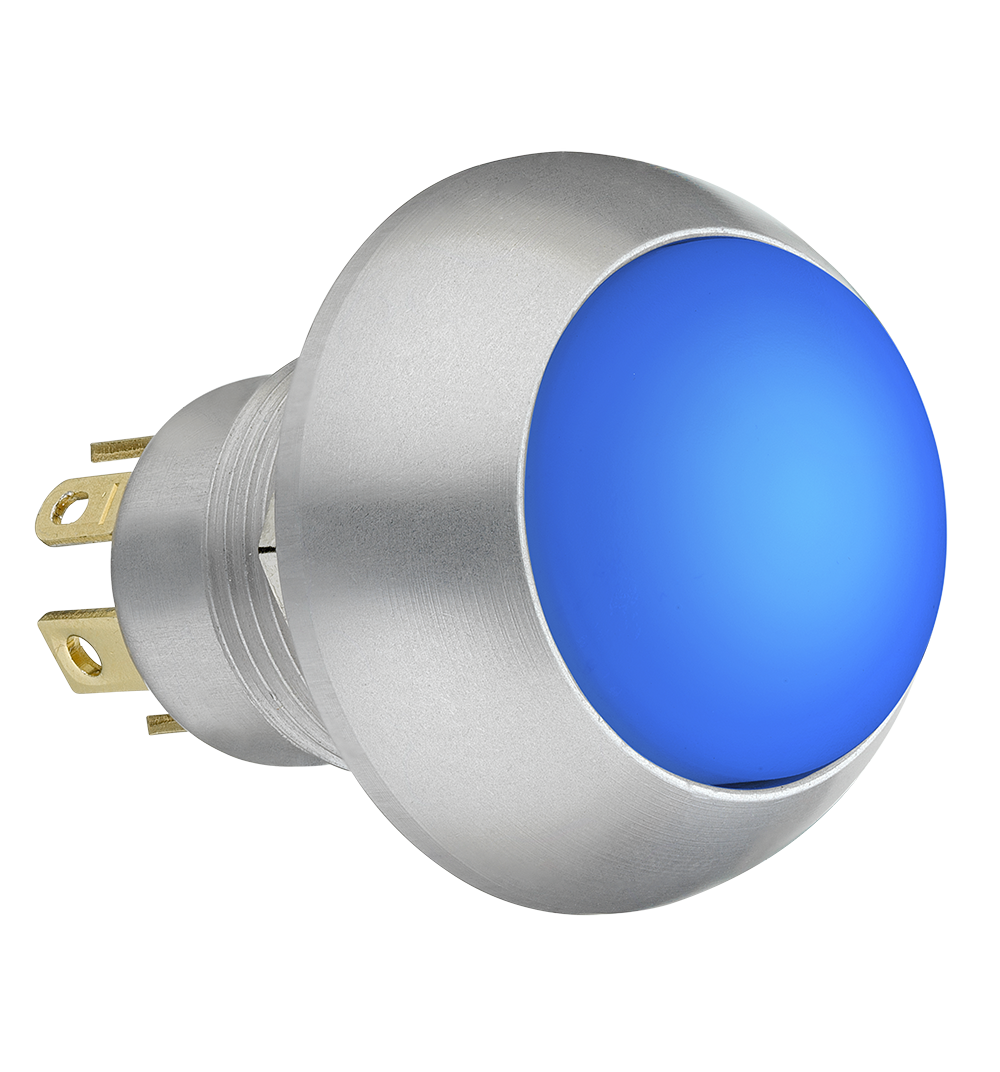

LP3S-F4L321W

OTTLP3S_F4L321W
Heilind Number:OTTLP3S-F4L321W
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-F4L321W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-F4L321W
Series:LP3S
Cap Color:White
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Dome (Flush)
Actuator Shape:Round
Current Rating:10 - 100 mA
Mounting Style:Panel Mount
Actuator Length:.491 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):250,000 Cycles
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-F4L321W

Detailed Description

Introducing the LP3S Series Shorter Behind Panel Illuminated Sealed Momentary Pushbutton Switch in Silver and White. Featuring a durable aluminum housing and thermoplastic actuator, this high-quality switch is designed for reliable performance in demanding environments. With an IP6K8S rating, it ensures protection against dust and water ingress, while the gold-plated brass contacts guarantee excellent conductivity. The Green LED illumination, powered by a 24V DC voltage, offers clear visibility. Ideal for panel mounting, it has a sleek flush dome actuator with a round shape, providing a comfortable tactile experience. The SPST-NO contact configuration and Off-(On) switch function make it suitable for various applications. Operating efficiently in temperatures ranging from -55°C to 85°C, and with a durability rating of 250,000 cycles, this pushbutton switch is a dependable choice for industrial and commercial use.
