LP3S-R3A322W

OTTLP3S_R3A322W
Heilind Number:OTTLP3S-R3A322W
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-R3A322W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

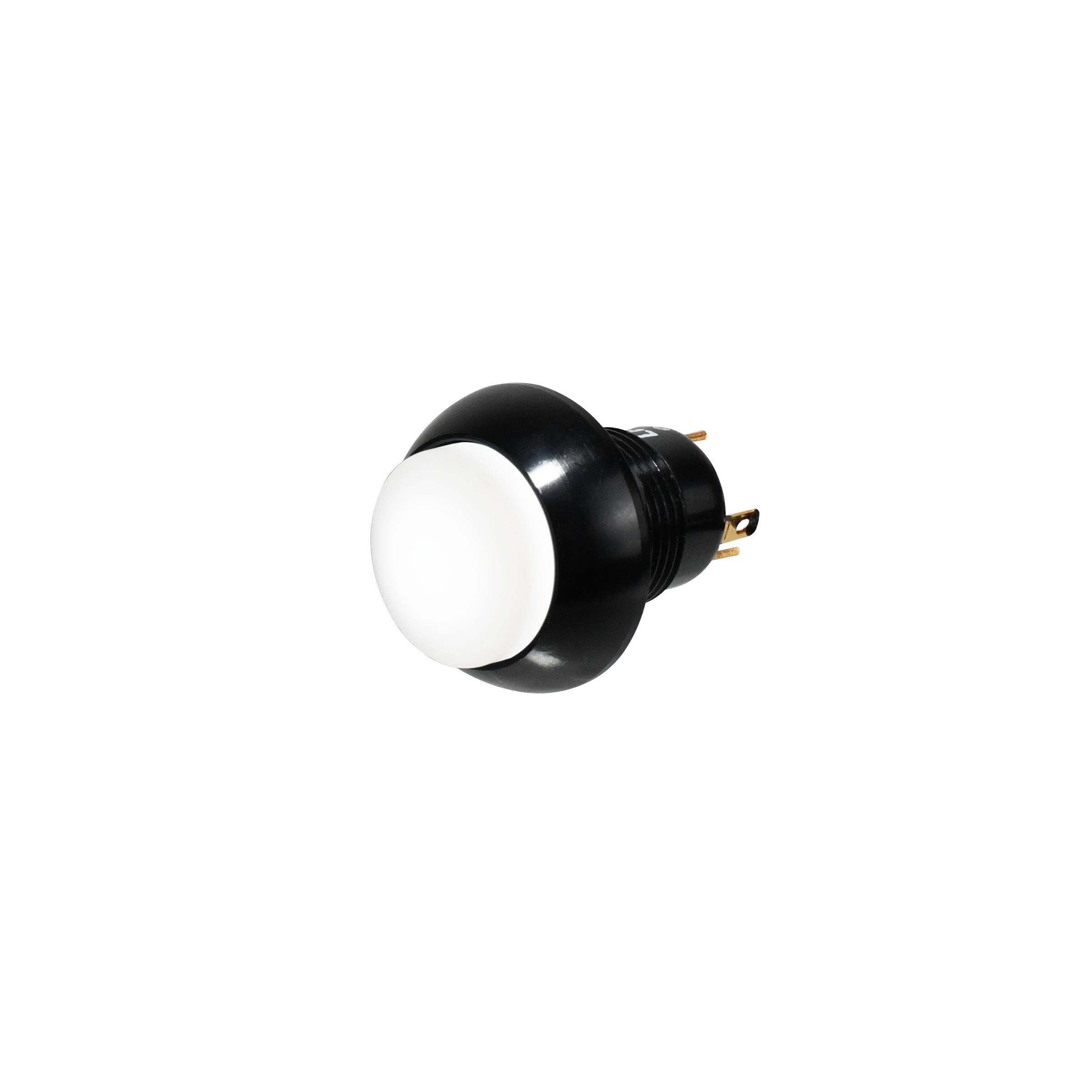

Shorter Behind Panel, Illuminated, Sealed, Momentary Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-R3A322W
Series:LP3S
Cap Color:White
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Dome (Raised)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.511 in
Contact Plating:Gold
Switch Function:ON-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP3S-R3A322W

Detailed Description

Introducing the LP3S Series Illuminated Sealed Momentary Pushbutton Switch, SKU LP3S-R3A322W. Designed for reliability and durability, this switch features a White Dome (Raised) actuator with Red illumination, making it easy to locate and operate. With an IP6K8S rating, it ensures protection against dust and water ingress. The quick connect termination type allows for easy installation, while the Panel Mounting style and Black Aluminum housing provide a secure and sleek fit. Operating at a maximum of 115VAC and 28VDC, with a current rating of 5A, this switch is suitable for a wide range of applications. The SPDT contact configuration and momentary switch function offer versatility in usage. Whether used in industrial machinery or consumer electronics, this LP3S pushbutton switch guarantees reliable performance in demanding environments.
