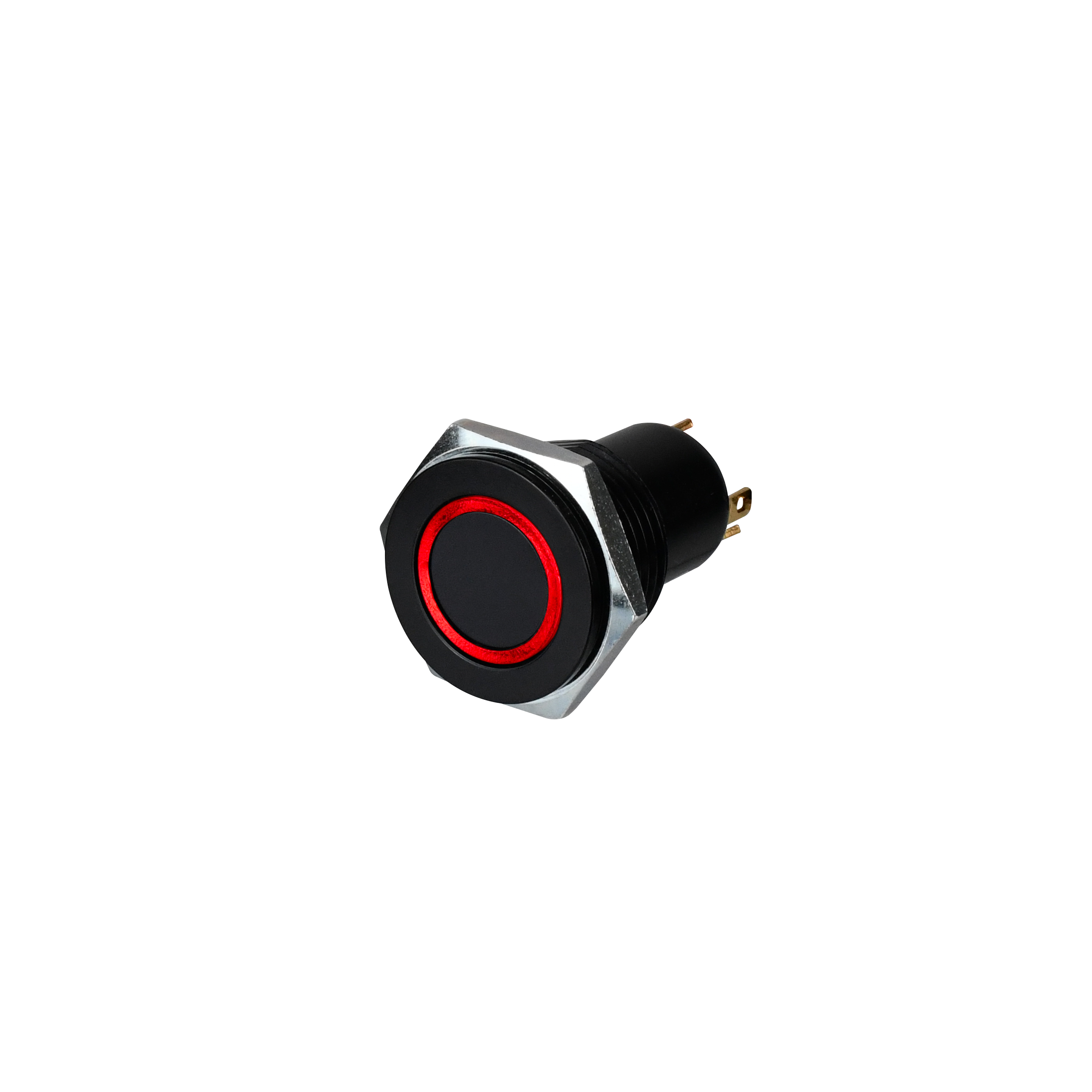

LP3S-V53B3415

OTTLP3S_V53B3415
Heilind Number:OTTLP3S-V53B3415
Manufacturer:OTTO Controls
Manufacturer Number:LP3S-V53B3415
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant, Shorter Behind Panel, Sealed, Illuminated, Momentary Action, Stanless Steel, Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP3S-V53B3415
Series:LP3S-V
Housing Material:Stainless Steel
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flush Profile Flat)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.047 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP3S-V53B3415

Detailed Description

Introducing the LP3S-V53B3415, a rugged and reliable pushbutton switch designed for demanding environments. Featuring a durable stainless steel construction with a sleek silver finish, this switch is not only visually appealing but also able to withstand harsh conditions. With an IP6K8S rating, it is sealed against dust and water ingress, making it ideal for outdoor or industrial applications. The illuminated green button allows for easy visibility, while the momentary action provides quick and efficient operation. With a contact configuration of SPDT and a current rating of 5 A, this switch offers versatile functionality. Whether used in automotive, aerospace, or military settings, the LP3S-V53B3415 guarantees long-lasting performance with a durability rating of 25,000 cycles. Trust in this vandal-resistant and high-quality pushbutton switch for all your control needs.
