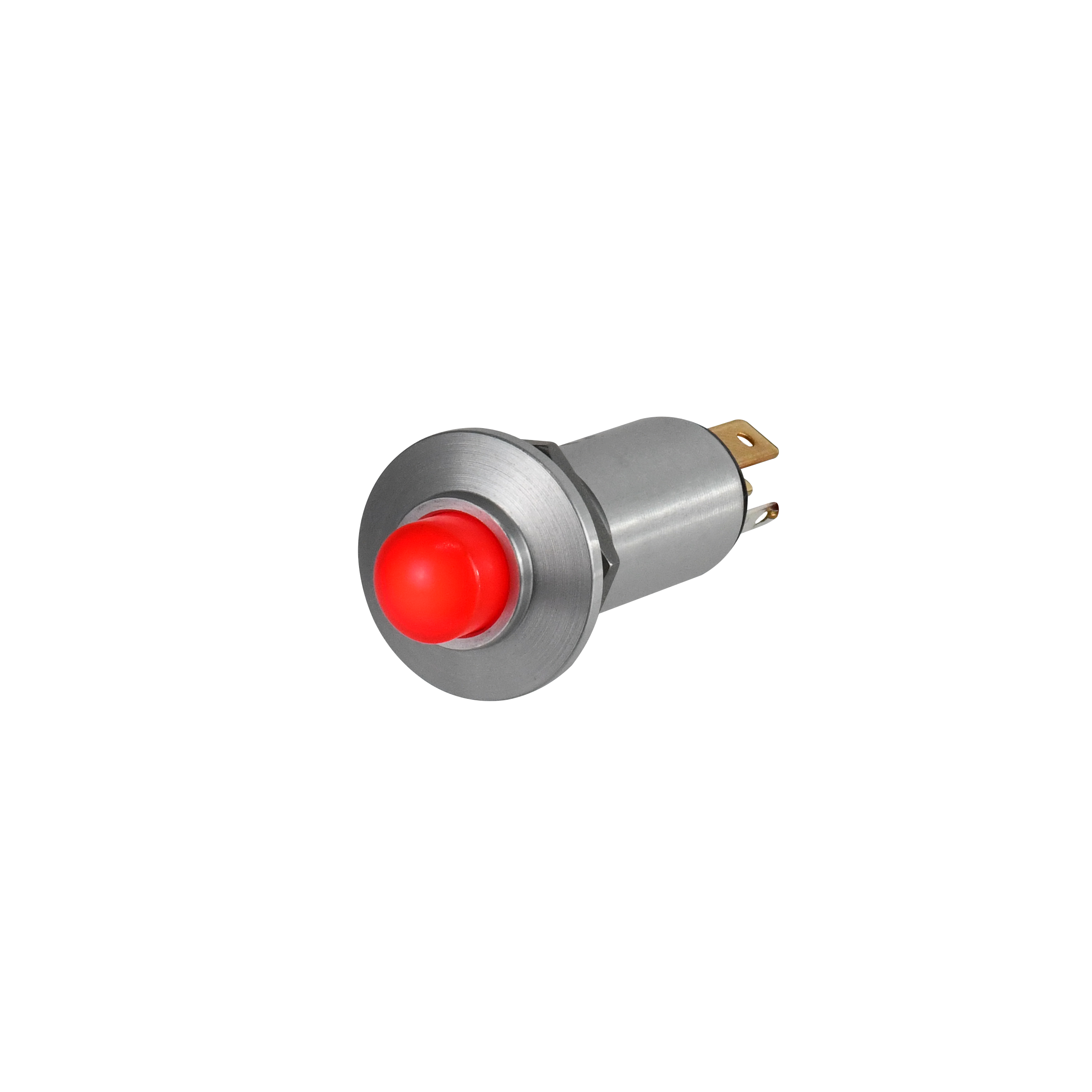

LP5-31L32W

OTTLP5_31L32W
Heilind Number:OTTLP5-31L32W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-31L32W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-31L32W
Series:LP5
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Raised Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-31L32W

Detailed Description

The LP5 series, SKU LP5-31L32W, presents a cutting-edge illuminated push button switch designed for optimal performance in demanding environments. Featuring a durable construction with an aluminum housing and thermoplastic actuator, this switch ensures longevity and reliability. The white translucent cap and green illumination provide clear visibility, while the IP6K8S sealing offers protection against dust and water ingress. With a 5A current rating, SPST-NO contact configuration, and 25,000-cycle durability, it guarantees efficient operation. The Off-On switch function and 24V illumination voltage further enhance its functionality. Ideal for panel mounting with solder termination, this high-quality push button switch is perfect for applications where performance and longevity are paramount.
