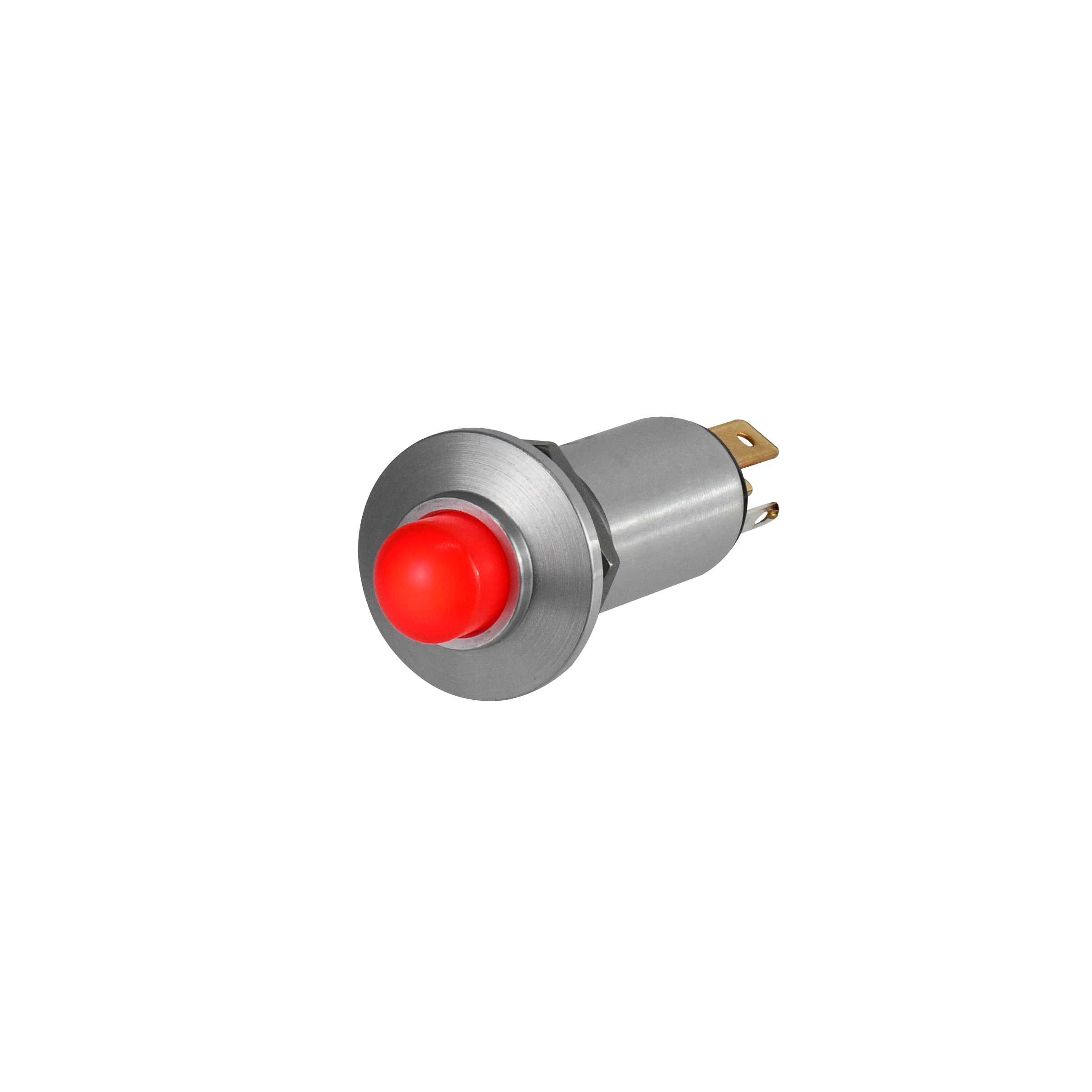

LP5-32A32R

OTTLP5_32A32R
Heilind Number:OTTLP5-32A32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-32A32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-32A32R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
SKU:OTTLP5-32A32R

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch, featuring a red translucent cap, offers a durable and reliable solution for panel-mount applications. With an IP6K8S rating, this switch is sealed against dust and water ingress, making it suitable for a wide range of environments. The raised dome button actuator, made of thermoplastic, ensures comfortable operation. Its SPDT contact configuration with silver-plated brass contacts guarantees efficient conductivity. Illuminated with a red LED, this switch provides clear visual feedback. Rated for 5A at 115VAC and 28VDC, it is suitable for various power applications. Operating between -55°C to 85°C, with a durability rating of 25,000 cycles, this switch is designed for long-term use. Perfect for industrial and commercial settings, it is a dependable choice for control and signaling systems.
