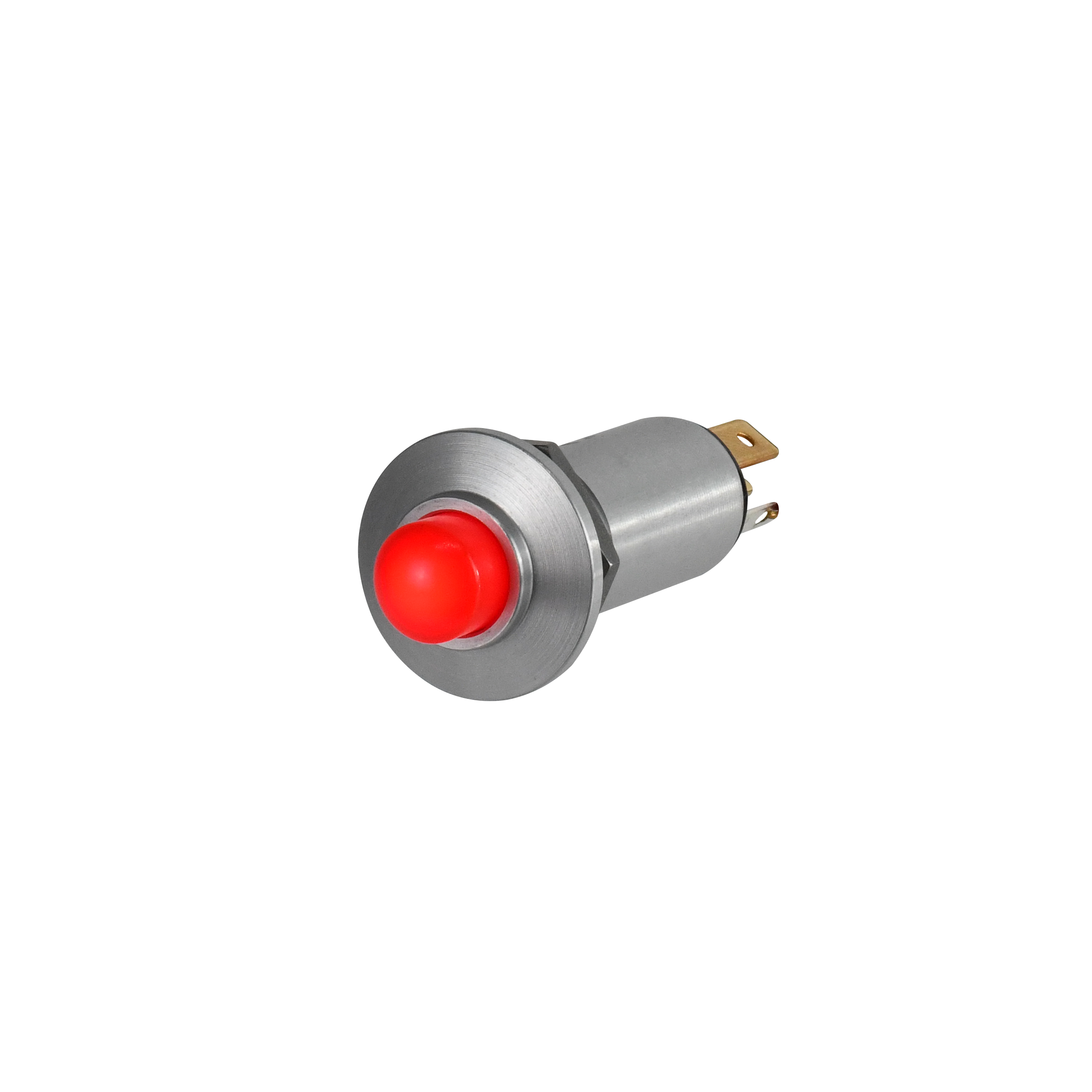

LP5-33G32R

OTTLP5_33G32R
Heilind Number:OTTLP5-33G32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-33G32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-33G32R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-33G32R

Detailed Description

The LP5 series LP533G32R is a high-performance illuminated pushbutton switch designed for reliable operation in demanding environments. Featuring a raised dome button actuator with a round shape, this switch offers tactile feedback and easy operation. The red translucent cap color, along with gold contact plating, not only enhances visibility but also ensures long-lasting durability. With an IP6K8S rating for dust and water resistance, along with a wide operating temperature range from -55°C to 85°C, this switch is suitable for use in a variety of applications. Its panel mount design and solder termination type make installation easy, while the SPST-NO contact configuration guarantees a reliable Off-On function. The LP533G32R is the ideal choice for aerospace, military, and industrial applications where performance and longevity are paramount.
