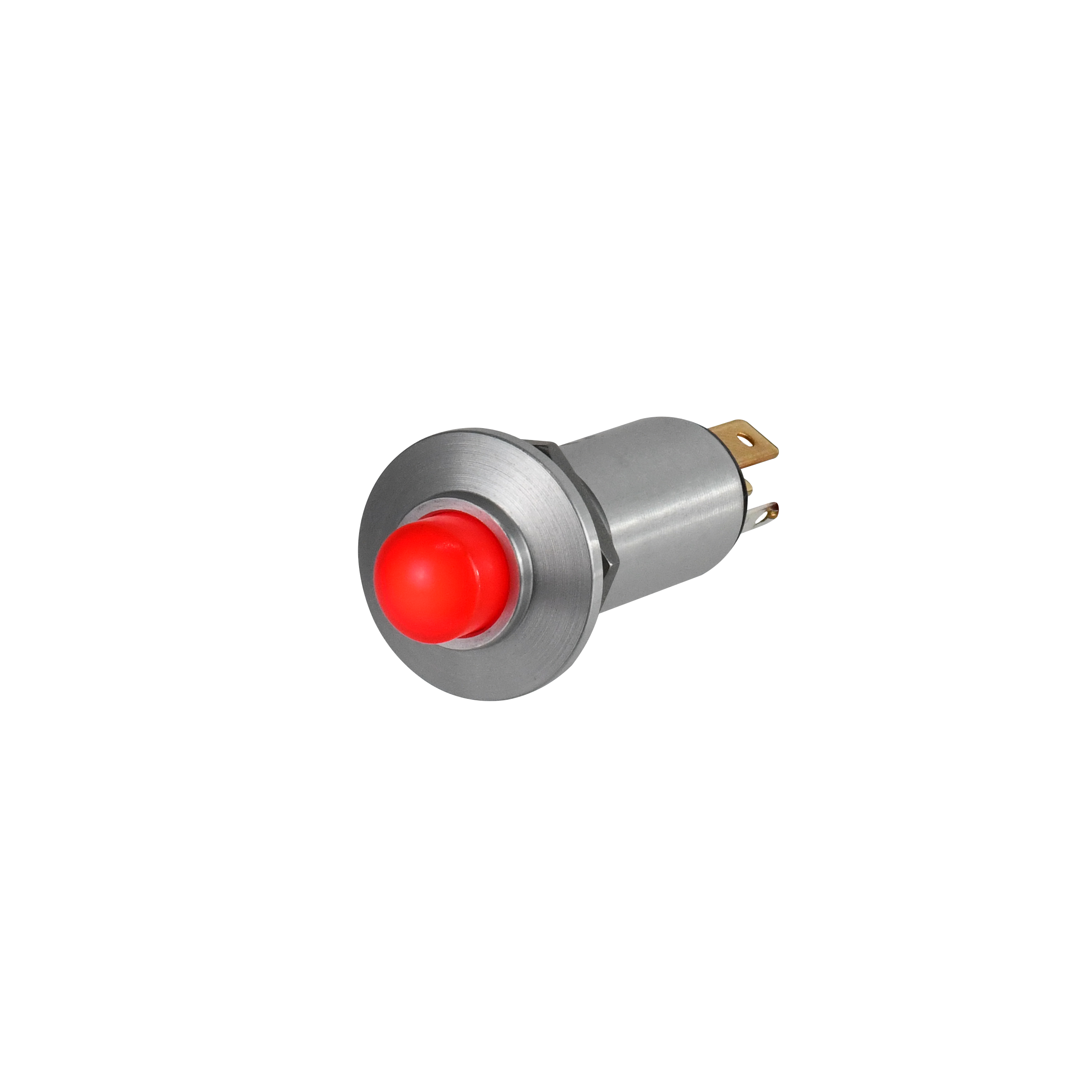

LP5-33H22W

OTTLP5_33H22W
Heilind Number:OTTLP5-33H22W
Manufacturer:OTTO Controls
Manufacturer Number:LP5-33H22W
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-33H22W
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:White - Translucent
Actuator Length:.25 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-33H22W

Detailed Description

Introducing the LP5 Series Illuminated Alternate Action Pushbutton Switch, featuring a sleek design with a white translucent cap and black casing. This durable switch, with a lifespan of 200,000 cycles, offers reliable performance in various applications. The raised dome button, made of thermoplastic, provides a comfortable actuation experience. With a gold-plated brass contact material and solder termination, it ensures efficient conductivity. The SPST-NO contact configuration and Off-On switch function make it suitable for control applications. Operating between -55°C to 85°C and with a voltage rating of 3-28 VDC, this switch is ideal for demanding environments. The green illumination, powered by 12V, adds visual indication. Panel mount installation and IP6K4S rating guarantee secure usage. Upgrade your control systems with the LP533H22W, the ultimate sealed pushbutton switch.
