LP5-33K22R

OTTLP5_33K22R
Heilind Number:OTTLP5-33K22R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-33K22R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

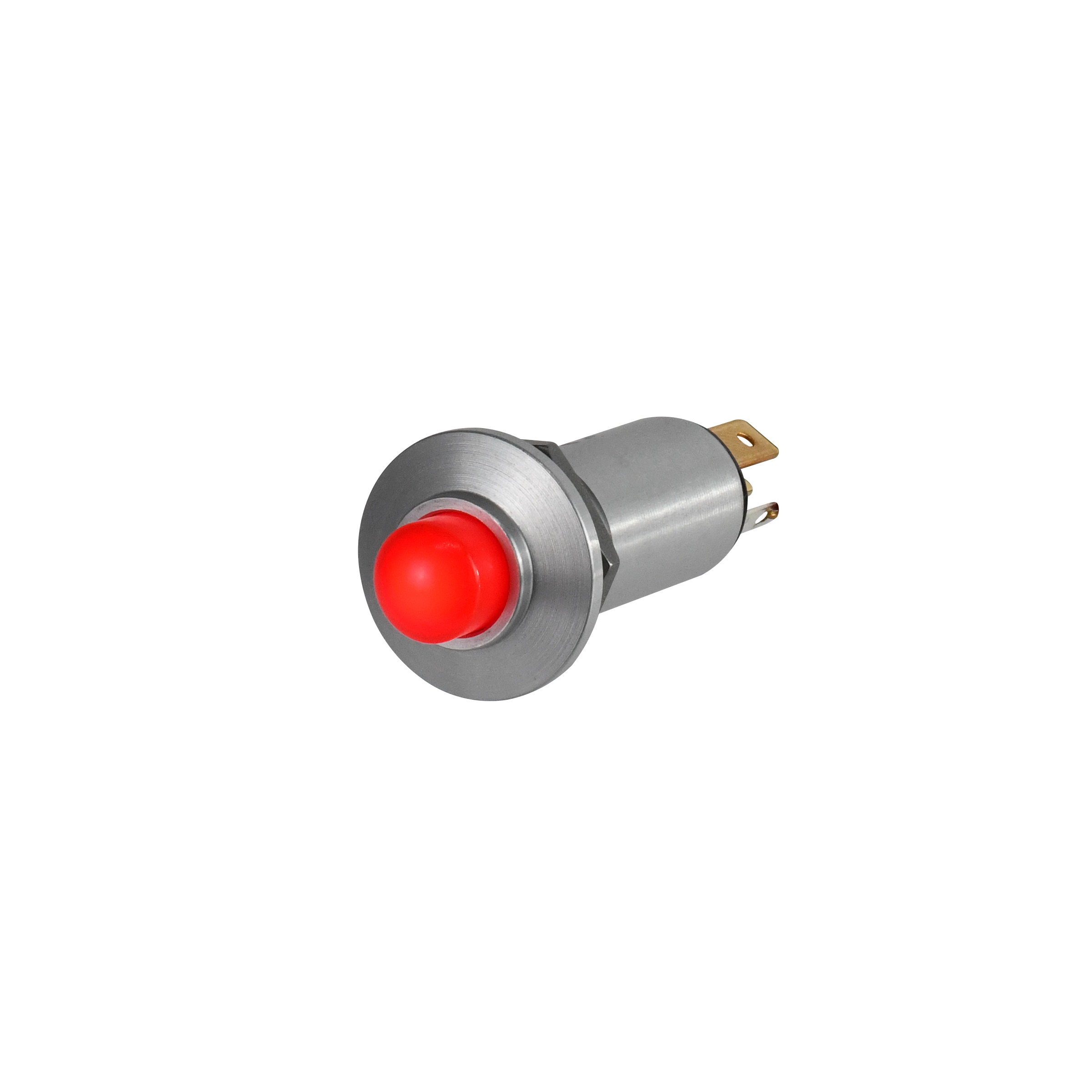

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-33K22R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-33K22R

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch, SKU LP5-33K22R, offers reliable functionality with its high durability rating of 200,000 cycles. Featuring a red translucent cap and gold contact plating, this panel-mount switch ensures secure solder termination. With an IP6K4S rating for dust and water resistance, it's suitable for various environments. The switch's off-on function and SPST-NO contact configuration, along with a current rating of 10-100mA and voltage rating of 3-28VDC, make it versatile for different applications. The thermoplastic actuator and aluminum housing guarantee robustness, while the illuminated red LED provides visual feedback. Operating in temperatures ranging from -55°C to 85°C, this pushbutton switch is ideal for demanding industrial settings. Upgrade your control systems with the LP5 Series for reliable performance.
