LP5-63K22R

OTTLP5_63K22R
Heilind Number:OTTLP5-63K22R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-63K22R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

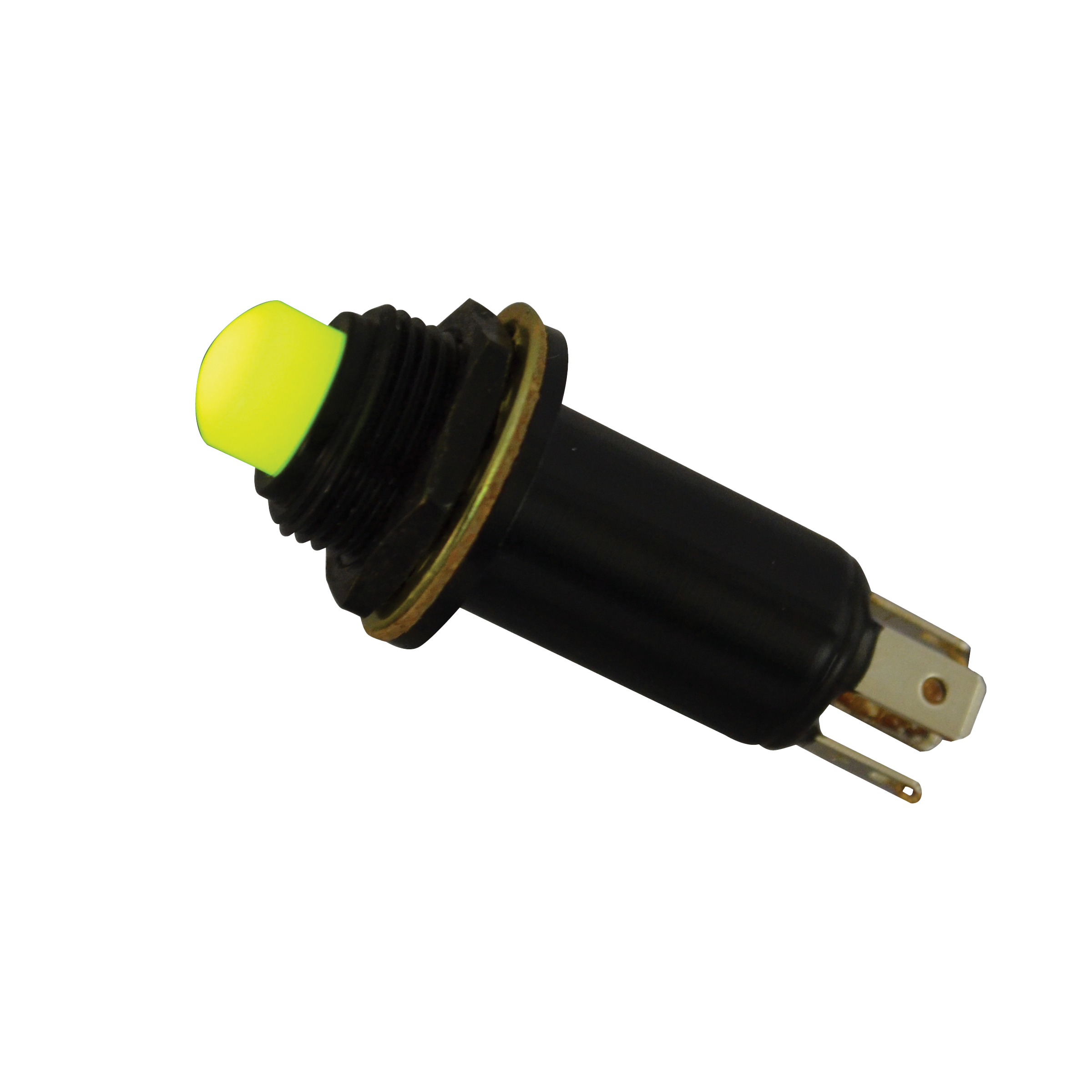

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-63K22R
Series:LP5
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Dome)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Round
Cap Color:Red - Translucent
Actuator Length:.25 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 - 100 mA
Voltage Rating (DC):3 - 28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-63K22R

Detailed Description

The LP5 series presents the LP563K22R, a high-performance pushbutton switch engineered for reliability in demanding environments. Featuring a durable aluminum housing with a black finish and a red translucent button, this switch is both rugged and visually striking. With an IP6K4S rating, it ensures protection against dust and water ingress, making it ideal for industrial applications. The illuminated button, with a red LED light and a voltage rating of 24V, offers enhanced visibility. The SPST-NO contact configuration, gold-plated brass contacts, and a current rating of 10-100mA guarantee efficient electrical performance. Designed for panel mounting with solder termination, this switch is easy to install. With a lifespan of 200,000 cycles and a wide operating temperature range from -55°C to 85°C, the LP563K22R is a reliable choice for critical control systems.
