LP5-A11A313

OTTLP5_A11A313
Heilind Number:OTTLP5-A11A313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11A313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

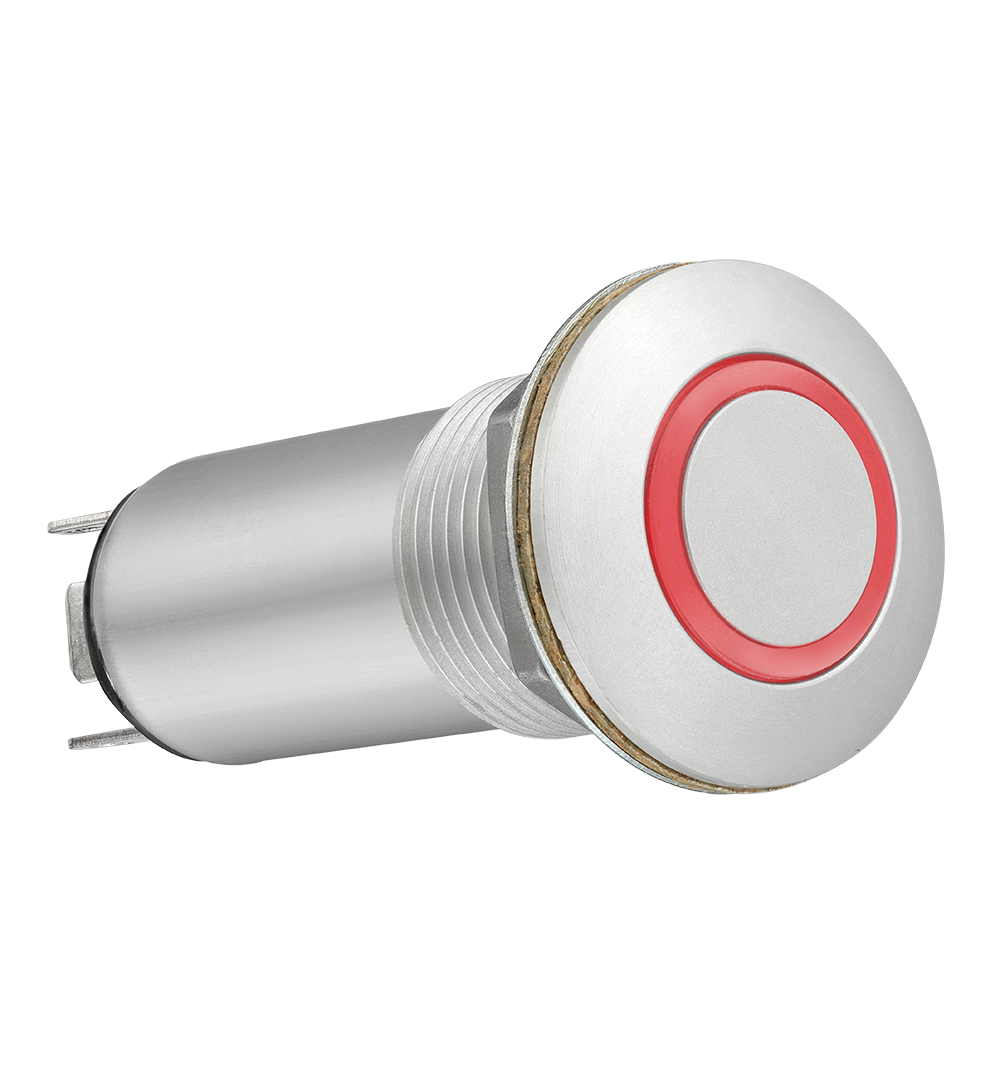

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11A313
Series:LP5-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A11A313

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Pushbutton Switch, SKU LP5-A11A313. Designed for durability and reliability in harsh environments, this switch features a sleek silver housing and a flat round button actuator. With an IP6K8S rating, it offers superior protection against dust and water ingress. The red illumination and silver cap make it easy to spot, while the SPST-NO contact configuration ensures seamless operation. Ideal for panel mounting, it has a 5A current rating and is suitable for both AC and DC applications. With a contact material of brass and silver plating, it guarantees long-lasting performance with a durability rating of 25,000 cycles. Operating temperature ranges from -55°C to 85°C, making it suitable for a wide range of industrial applications. Upgrade to the LP5-V series for a high-quality, vandal-resistant pushbutton switch that meets your exacting requirements.
