LP5-A11H322

OTTLP5_A11H322
Heilind Number:OTTLP5-A11H322
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11H322
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

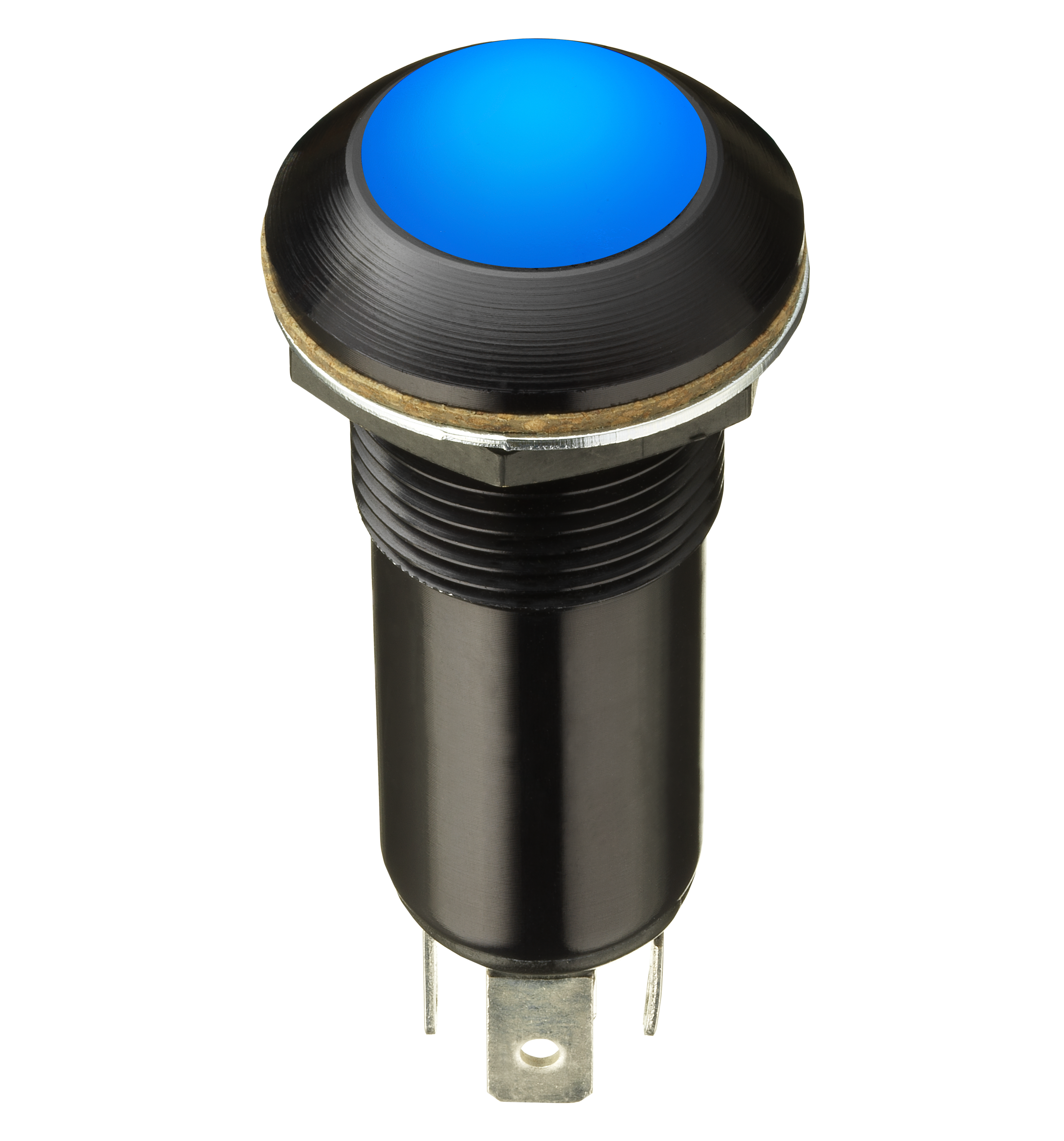

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11H322
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A11H322

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek black aluminum housing and a durable construction designed for high reliability in demanding environments. With a 5A current rating and a contact material of silver-plated brass, this switch guarantees optimal performance and longevity. The SPST-NO contact configuration ensures reliable operation, while the Off-On switch function offers simple control. The green illumination not only enhances visibility but also adds a stylish touch. Perfect for panel mounting, this switch is sealed for protection against dust and water, with an IP6K8S rating. With a wide operating temperature range from -55°C to 85°C, it is suitable for a variety of applications. Trust in the LP5-V for superior quality and performance.
