LP5-A11H323

OTTLP5_A11H323
Heilind Number:OTTLP5-A11H323
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11H323
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

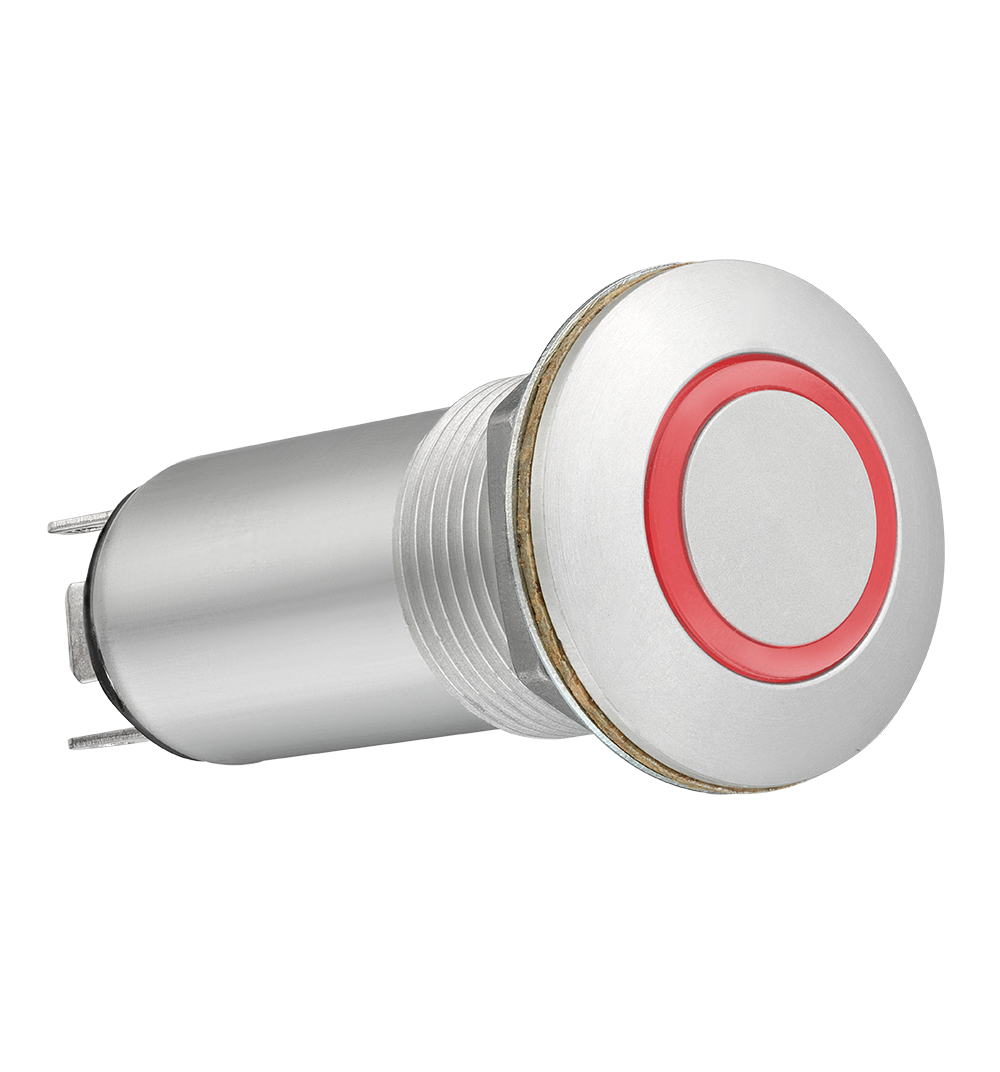

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11H323
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A11H323

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Pushbutton Switch, designed for durability and reliability in demanding environments. Featuring a sleek black housing and button, this switch is not only aesthetically pleasing but also offers IP6K8S sealing for protection against dust and water ingress. The green LED illumination provides clear indication of operation, while the 5A current rating and SPST-NO contact configuration ensure efficient performance. With a wide operating temperature range of -55°C to 85°C, this switch is suitable for use in a variety of applications. Panel mount installation and solder termination make for easy and secure setup. Trust in the LP5A11H323 for robust and long-lasting switch control.
