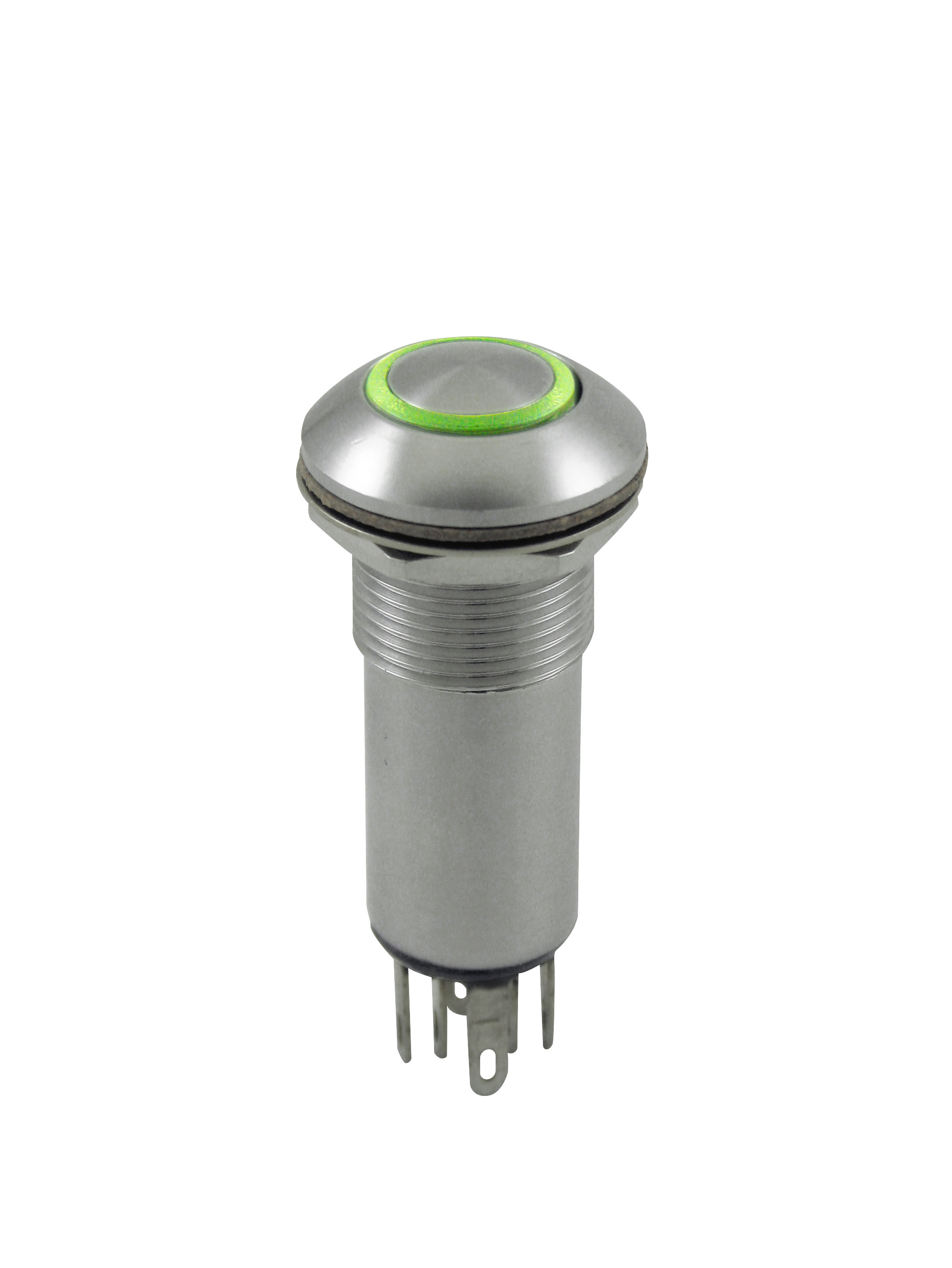

LP5-A11J211

OTTLP5_A11J211
Heilind Number:OTTLP5-A11J211
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11J211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11J211
Series:LP5-V
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A11J211

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, featuring a sleek silver design with a durable aluminum housing. With an IP6K4S rating, this switch is sealed for reliable performance in harsh environments. The flat round button actuator, made of aluminum, provides a responsive touch experience. Boasting a contact configuration of SPST-NO and a high durability rating of 25,000 cycles, it ensures long-lasting functionality. The amber illumination, powered by a 12V voltage, enhances visibility in low-light conditions. Ideal for panel mount installations, this switch has a current rating of 5A and voltage ratings of 115VAC and 28VDC. Whether for industrial or commercial applications, this pushbutton switch guarantees reliable operation in temperatures ranging from -55°C to 85°C. Upgrade your control panel with the LP5-A11J211 for premium performance.
