LP5-A11J312

OTTLP5_A11J312
Heilind Number:OTTLP5-A11J312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11J312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

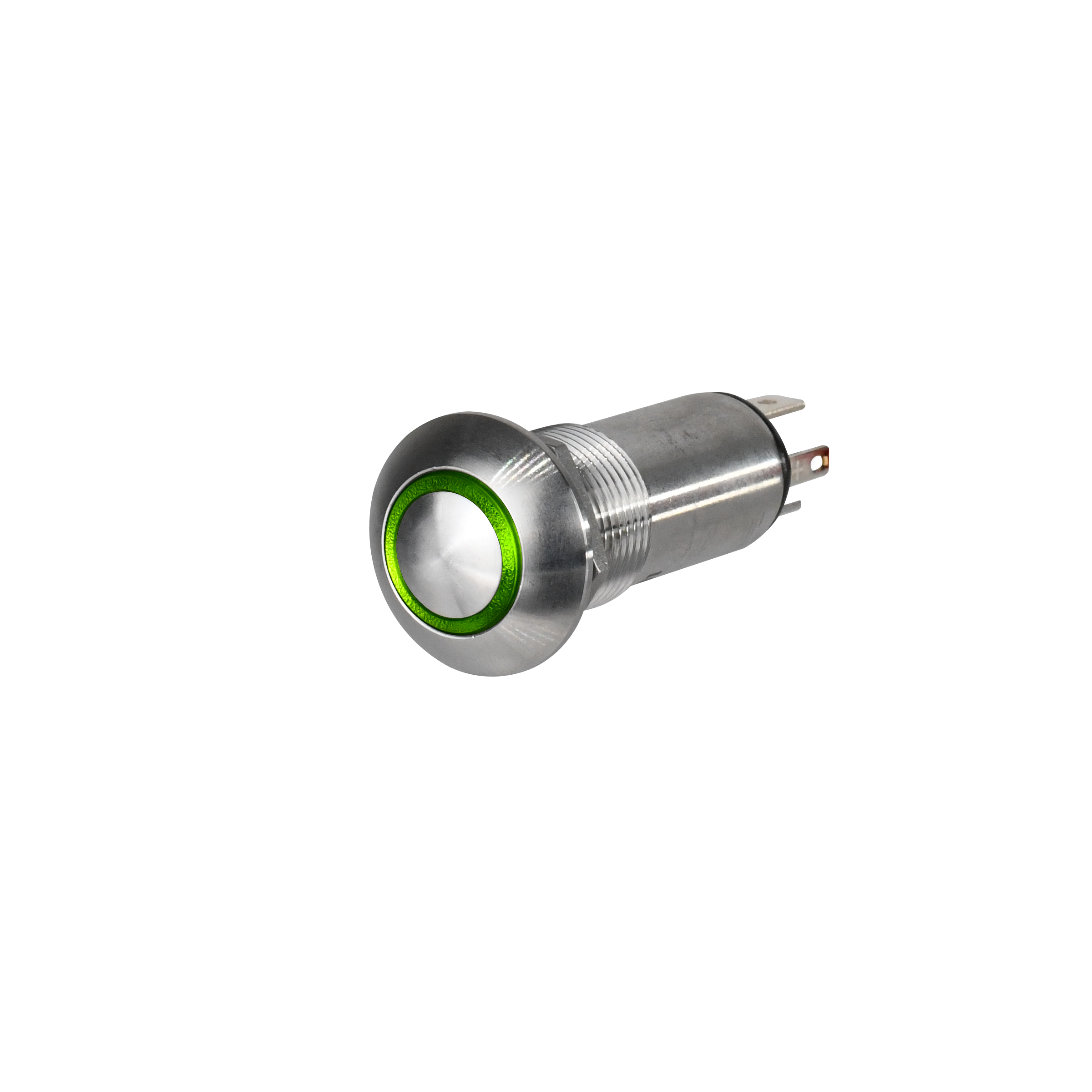

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11J312
Series:LP5-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Amber
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A11J312

Detailed Description

Introducing the LP5-V series aluminum pushbutton switch, model number LP5-A11J312. This durable and reliable switch features a vandal-resistant design, perfect for high-demand environments. The silver housing and cap add a sleek touch, while the illuminated amber button provides visibility in low-light conditions. With a contact configuration of SPST-NO and a maximum current rating of 5A, this switch is ideal for a variety of applications. The IP6K8S rating ensures protection against dust and water ingress, while the aluminum actuator and housing guarantee longevity. Panel mount installation and solder termination make setup a breeze. Whether you need a switch for industrial machinery or outdoor equipment, the LP5-A11J312 is the perfect choice.
