LP5-A11P215

OTTLP5_A11P215
Heilind Number:OTTLP5-A11P215
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11P215
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

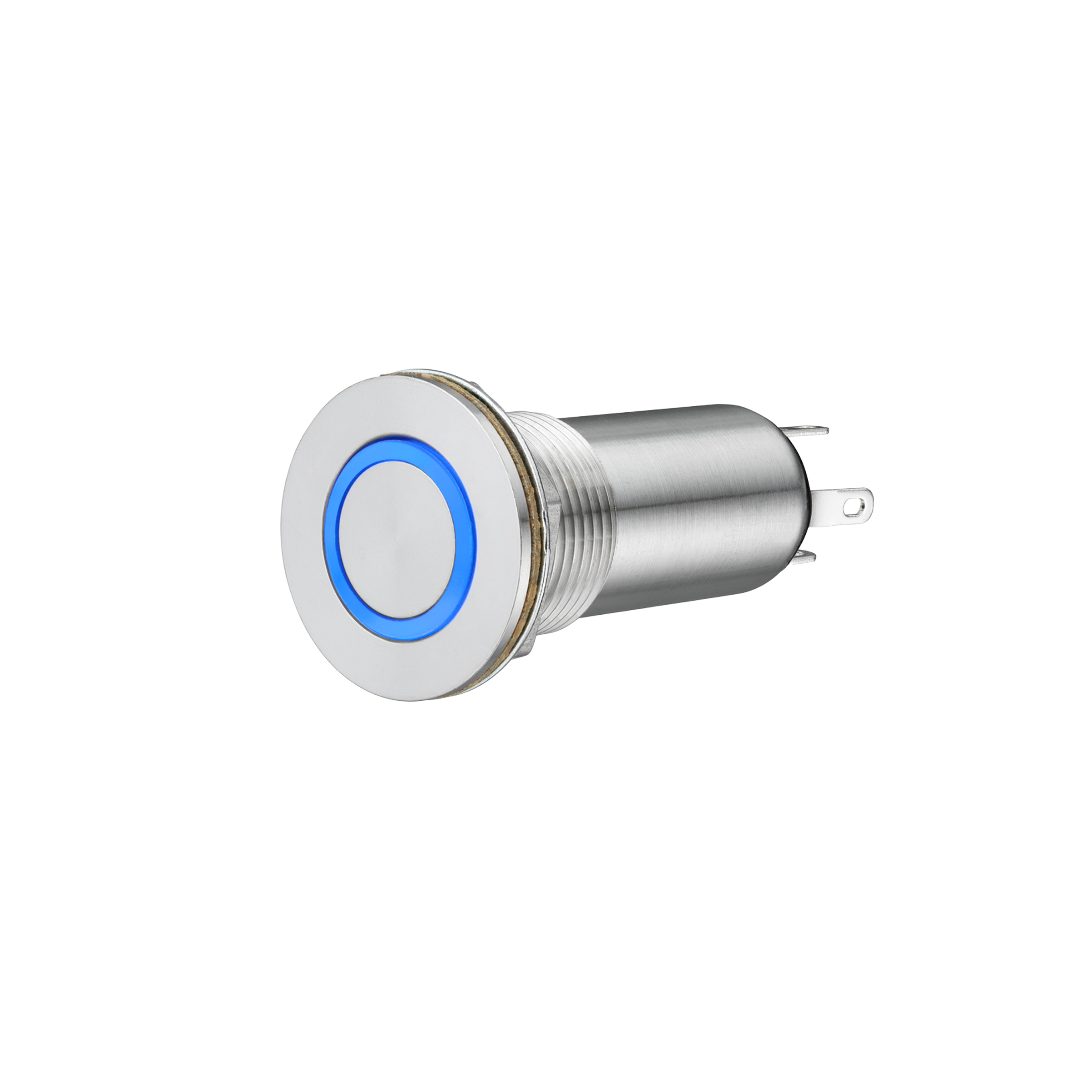

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11P215
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:6 V
SKU:OTTLP5-A11P215

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, a durable and reliable solution for your industrial control panel needs. With a sleek silver design and blue LED illumination, this switch offers both functionality and style. Featuring a flat round button actuator and solder termination, it is easy to install and use. The SPST-NO contact configuration ensures seamless operation, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of applications. Built to last with a durability rating of 25,000 cycles, and able to withstand extreme temperatures ranging from -55°C to 85°C, this switch is perfect for demanding environments. Upgrade your control panel with the LP5-V Series and experience reliable performance every time.
