LP5-A11Q312

OTTLP5_A11Q312
Heilind Number:OTTLP5-A11Q312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11Q312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

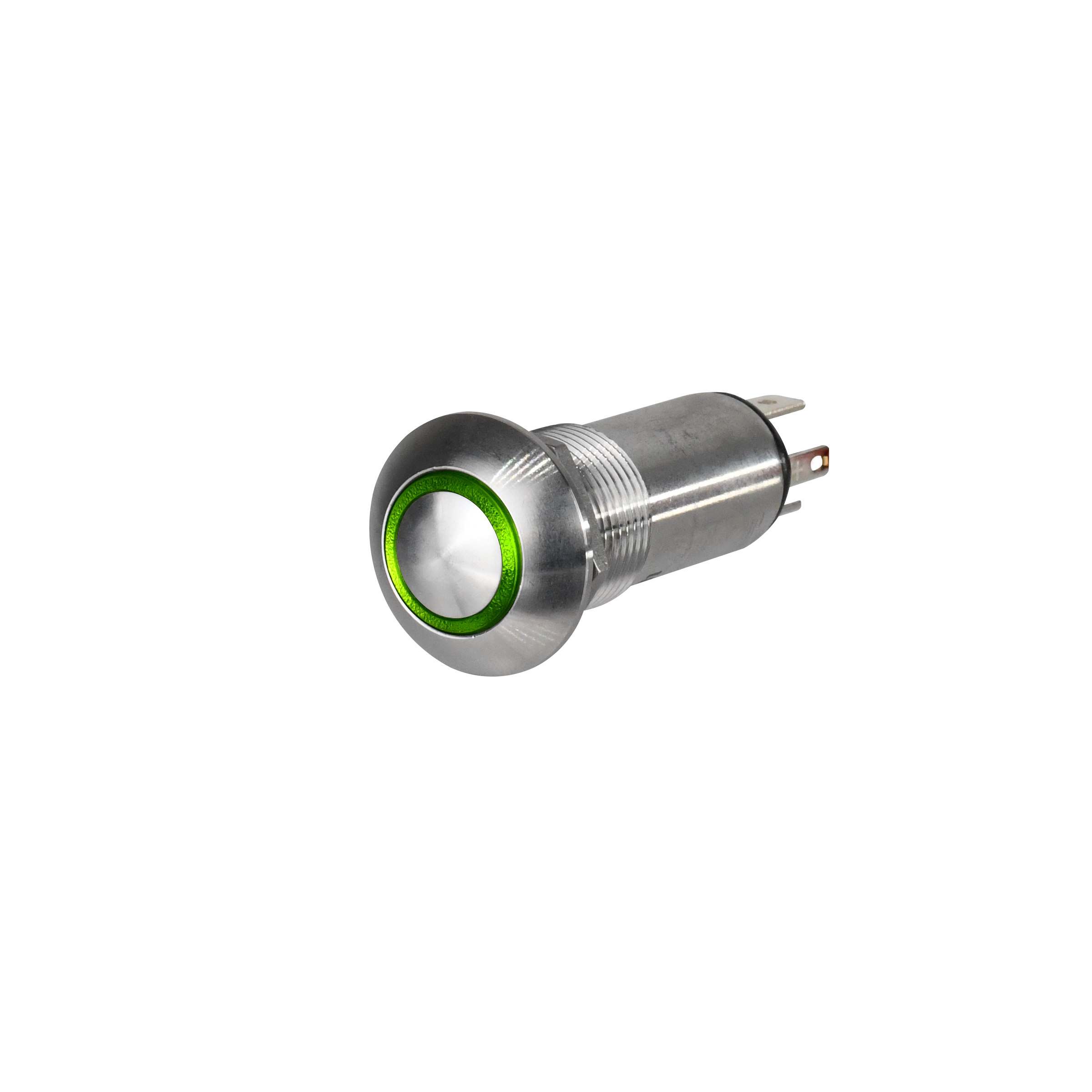

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11Q312
Series:LP5-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A11Q312

Detailed Description

The LP5-V series Aluminum Vandal Resistant Pushbutton Switch, SKU LP5-A11Q312, is a durable and reliable solution for industrial applications. Featuring a sleek Silver design with Blue Illumination, this Off-On switch is designed for panel mounting with a sealed construction, making it ideal for harsh environments. With a current rating of 5A and a voltage rating of 115VAC/28VDC, it ensures efficient performance. The SPST-NO contact configuration and Silver contact plating guarantee secure and low-resistance connections. The Aluminum housing and actuator material offer robust protection, while the IP6K8S rating ensures resistance to dust and water ingress. With a long lifespan of 25,000 cycles and an operating temperature range from -55°C to 85°C, this switch is suitable for a wide range of applications.
