LP5-A11S211

OTTLP5_A11S211
Heilind Number:OTTLP5-A11S211
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11S211
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

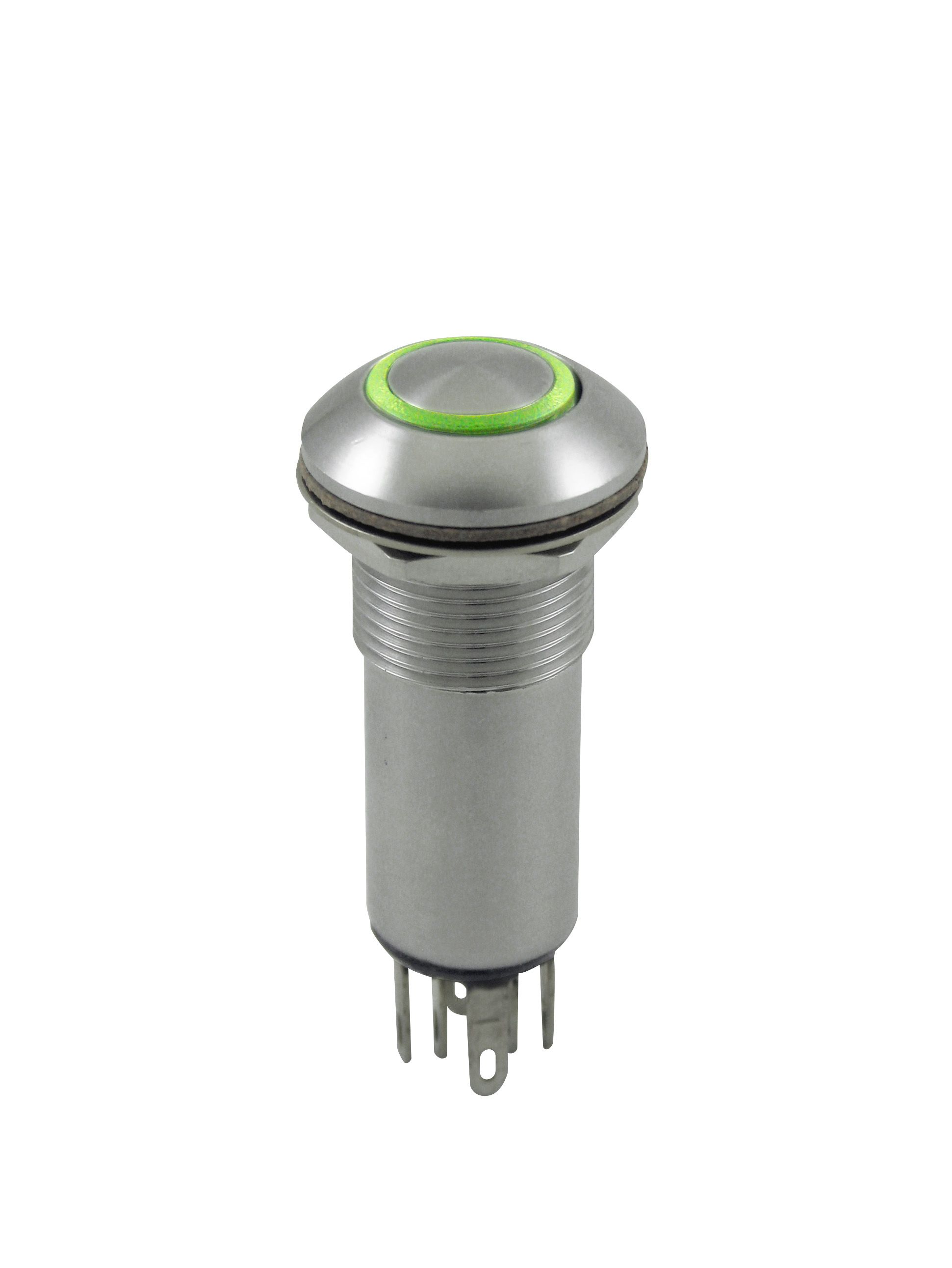

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11S211
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:2 V
SKU:OTTLP5-A11S211

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek Silver design with a durable Aluminum housing. This switch is engineered for reliability, with a contact material of high-quality Brass and a contact plating of Silver, ensuring optimal performance over 25,000 cycles. The SPST-NO contact configuration and Off-On switch function make it ideal for various applications. With an IP6K4S rating, it offers protection against dust and water ingress, while the wide operating temperature range of -55°C to 85°C guarantees functionality in diverse environments. The deep green Illumination adds a touch of style and visibility, with an illumination voltage of 2V. Perfect for panel mount installation, this switch is suitable for both AC and DC circuits, with voltage ratings of 115VAC and 28VDC respectively. Upgrade your control systems with the LP5-A11S211, the ultimate choice for high-performance switching.
