LP5-A11S221

OTTLP5_A11S221
Heilind Number:OTTLP5-A11S221
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11S221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

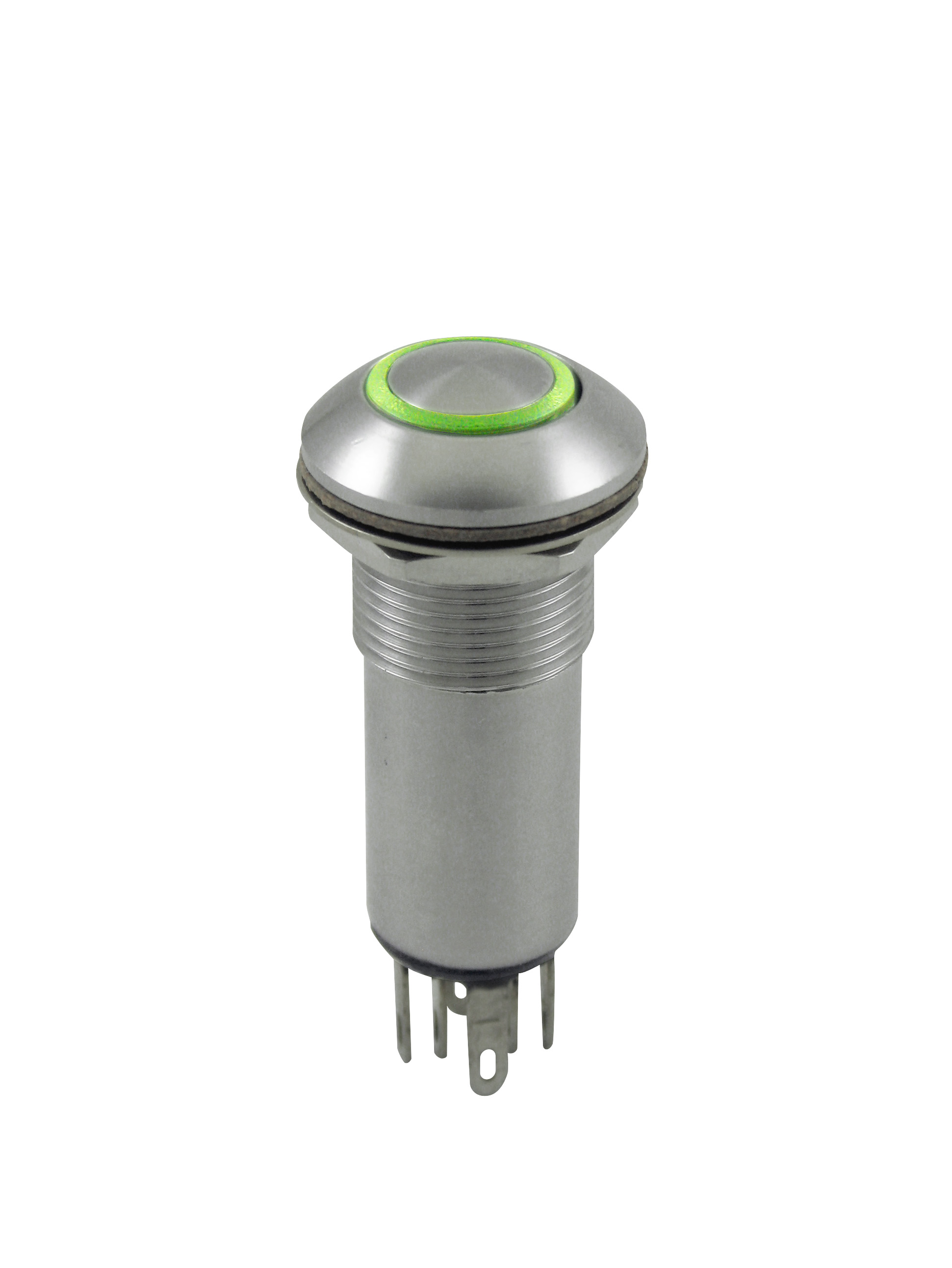

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11S221
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:2 V
SKU:OTTLP5-A11S221

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, perfect for applications requiring durability and security. Featuring a sleek black aluminum housing and an IP6K4S rating for dust and water resistance, this switch is built to withstand harsh environments. The deep green LED illumination adds a visually striking touch while providing clear indication of operation. The SPST-NO contact configuration ensures reliable performance, with a current rating of 5A and voltage ratings of 115VAC and 28VDC. Operating temperature range from -55°C to 85°C guarantees functionality in diverse settings. With a flat round button actuator design and panel mount installation, it offers ease of use and integration. Ideal for industrial, automotive, and outdoor applications, this sealed pushbutton switch is a dependable choice for your control needs.
