LP5-A11U221

OTTLP5_A11U221
Heilind Number:OTTLP5-A11U221
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A11U221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

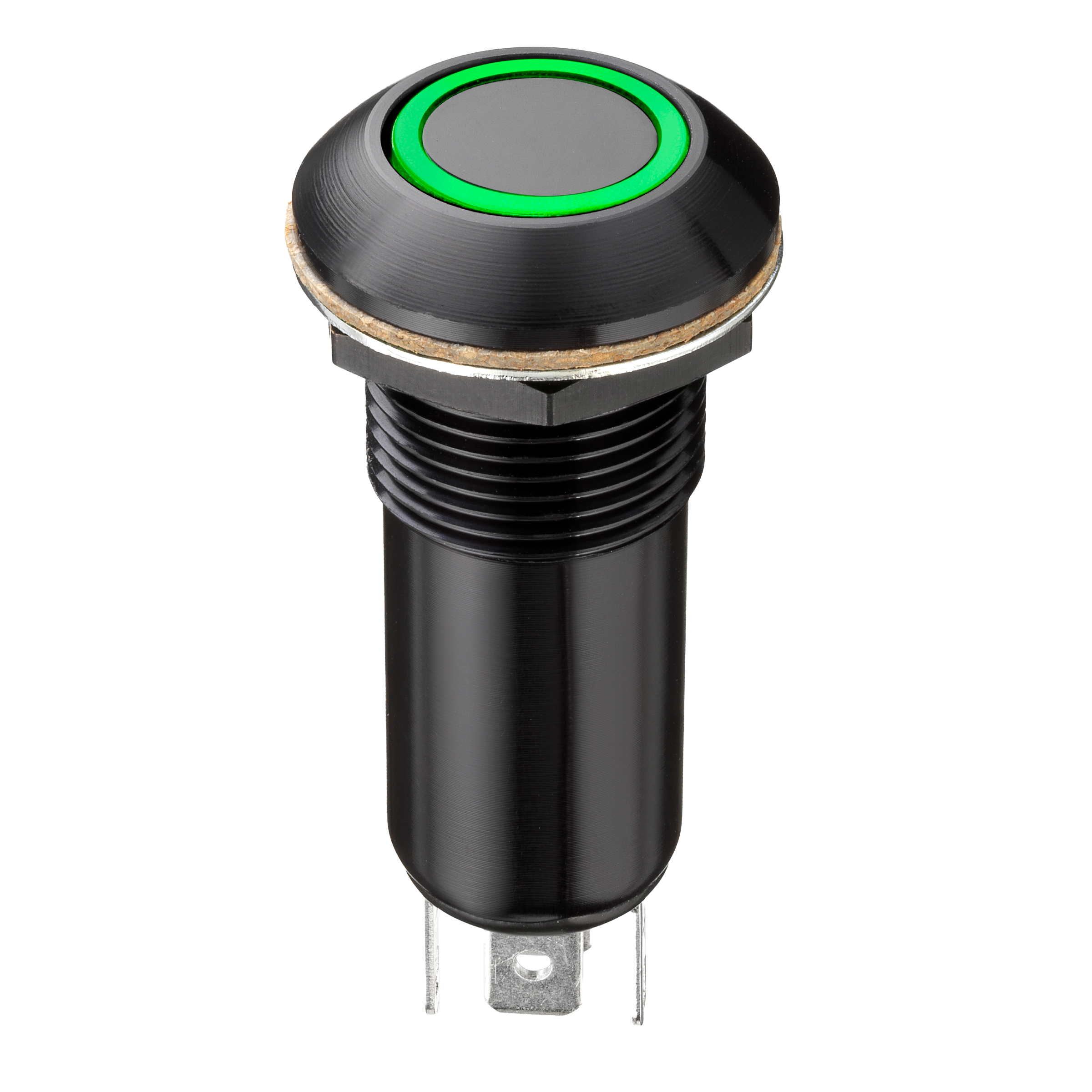

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A11U221
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.18 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP5-A11U221

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek black aluminum housing and a durable design that can withstand up to 25,000 cycles of operation. With an IP6K4S rating for dust and water resistance, this switch is ideal for use in demanding environments. The deep green illumination adds a stylish touch while providing visual feedback. The SPST-NO contact configuration ensures reliable performance, with a 5A current rating and 115VAC/28VDC voltage ratings. Easy to install with panel mount and solder termination options, this switch is perfect for a wide range of applications. Whether you need a reliable control solution for industrial machinery, automotive systems, or outdoor equipment, the LP5-V series Pushbutton Switch delivers exceptional quality and performance.
