LP5-A12E313

OTTLP5_A12E313
Heilind Number:OTTLP5-A12E313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12E313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

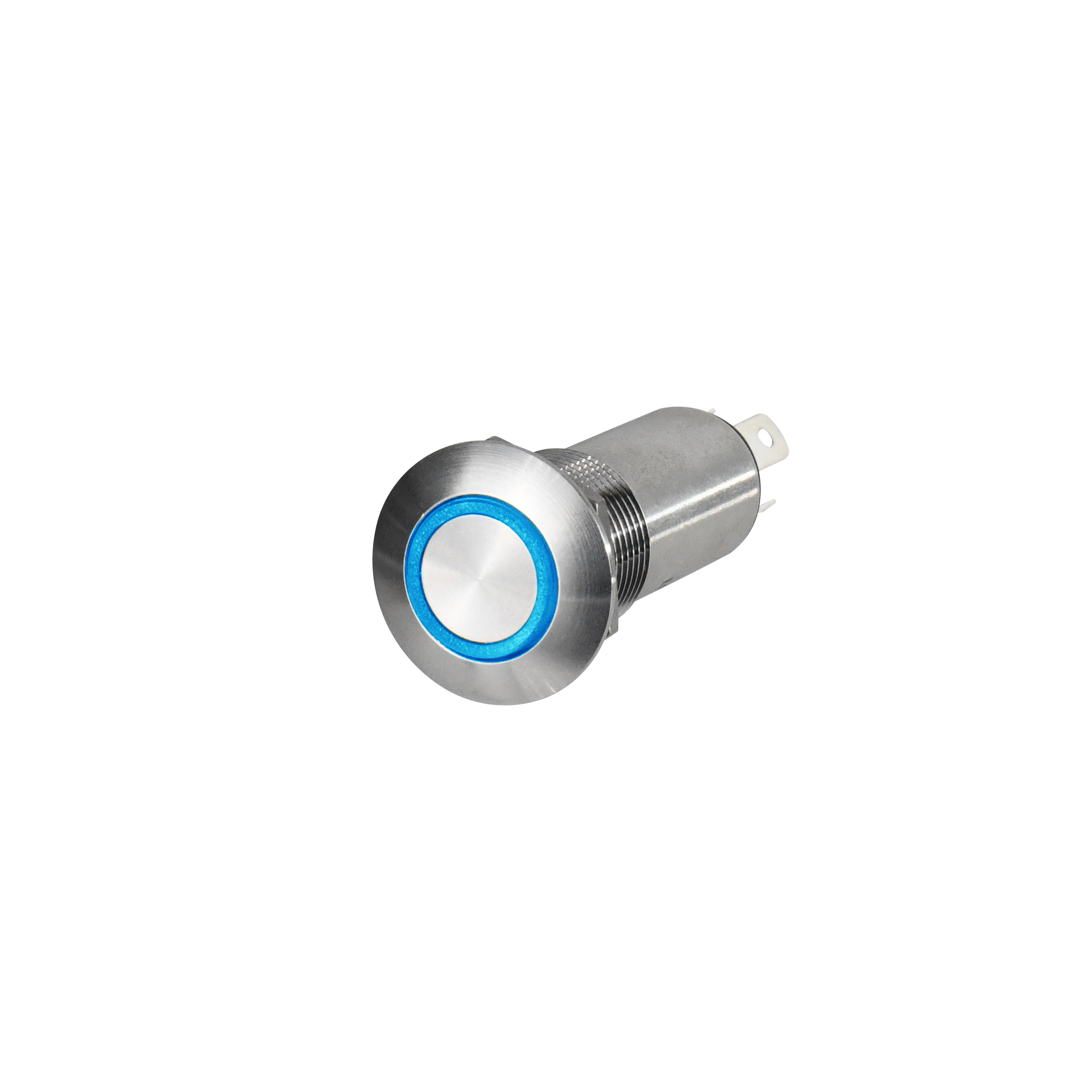

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12E313
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:6 V
SKU:OTTLP5-A12E313

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, perfect for applications requiring a durable and reliable switch solution. Featuring a sleek silver aluminum housing with a flat round button actuator, this switch offers a high level of durability with a rating of 25,000 cycles. The IP6K8S rating ensures protection against dust and water ingress, making it suitable for a wide range of environments. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch is ideal for both AC and DC applications. The SPDT contact configuration and On-On switch function provide versatile control options. The green illumination, powered by 6V, adds a visual indicator for user convenience. Panel mount installation and solder termination make for easy and secure setup. Operating temperature range from -55°C to 85°C ensures reliable performance in harsh conditions. Upgrade to the LP5-V for a premium pushbutton switch experience.
