LP5-A12H222

OTTLP5_A12H222
Heilind Number:OTTLP5-A12H222
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12H222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

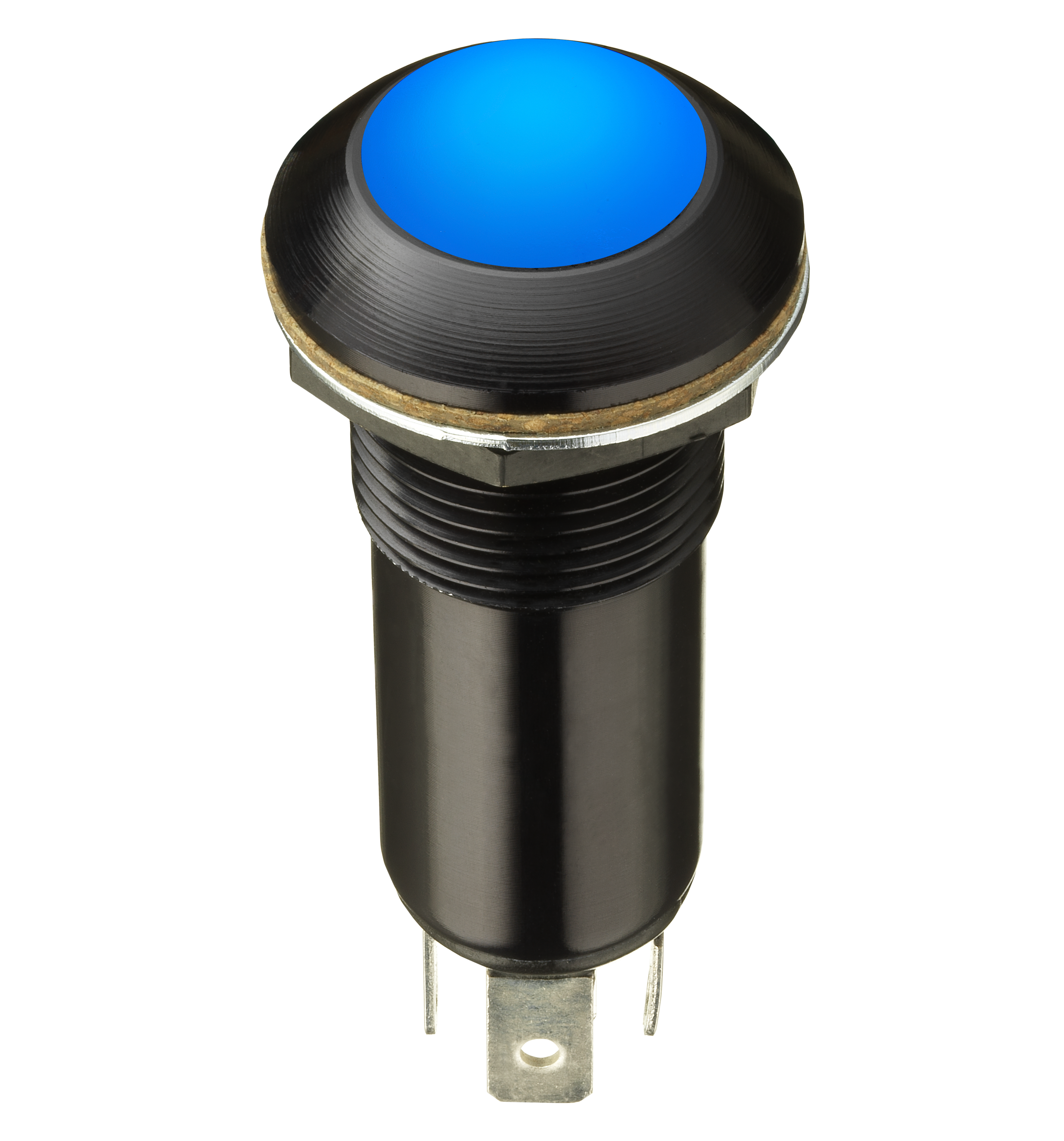

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12H222
Series:LP5-V
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A12H222

Detailed Description

Introducing the LP5-V series Push Button Switch, featuring a sleek black aluminum housing and a durable construction that's built to last through 25,000 cycles. With an IP6K4S rating for protection against dust and water ingress, this switch is ideal for outdoor and industrial applications. The round, curved button design offers comfortable actuation, while the green illuminated button ensures visibility in low-light conditions. Operating at a maximum temperature of 85°C and a minimum of -55°C, this switch is suitable for a wide range of environments. With a 5A current rating, SPDT contact configuration, and 115VAC/28VDC voltage ratings, it provides reliable performance in various electrical systems. Perfect for panel mounting with solder termination, this vandal-resistant switch is the ideal choice for demanding settings where both functionality and durability are essential. Upgrade your control panel with the LP5A12H222 for seamless operation in any situation.
