LP5-A12H223

OTTLP5_A12H223
Heilind Number:OTTLP5-A12H223
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12H223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

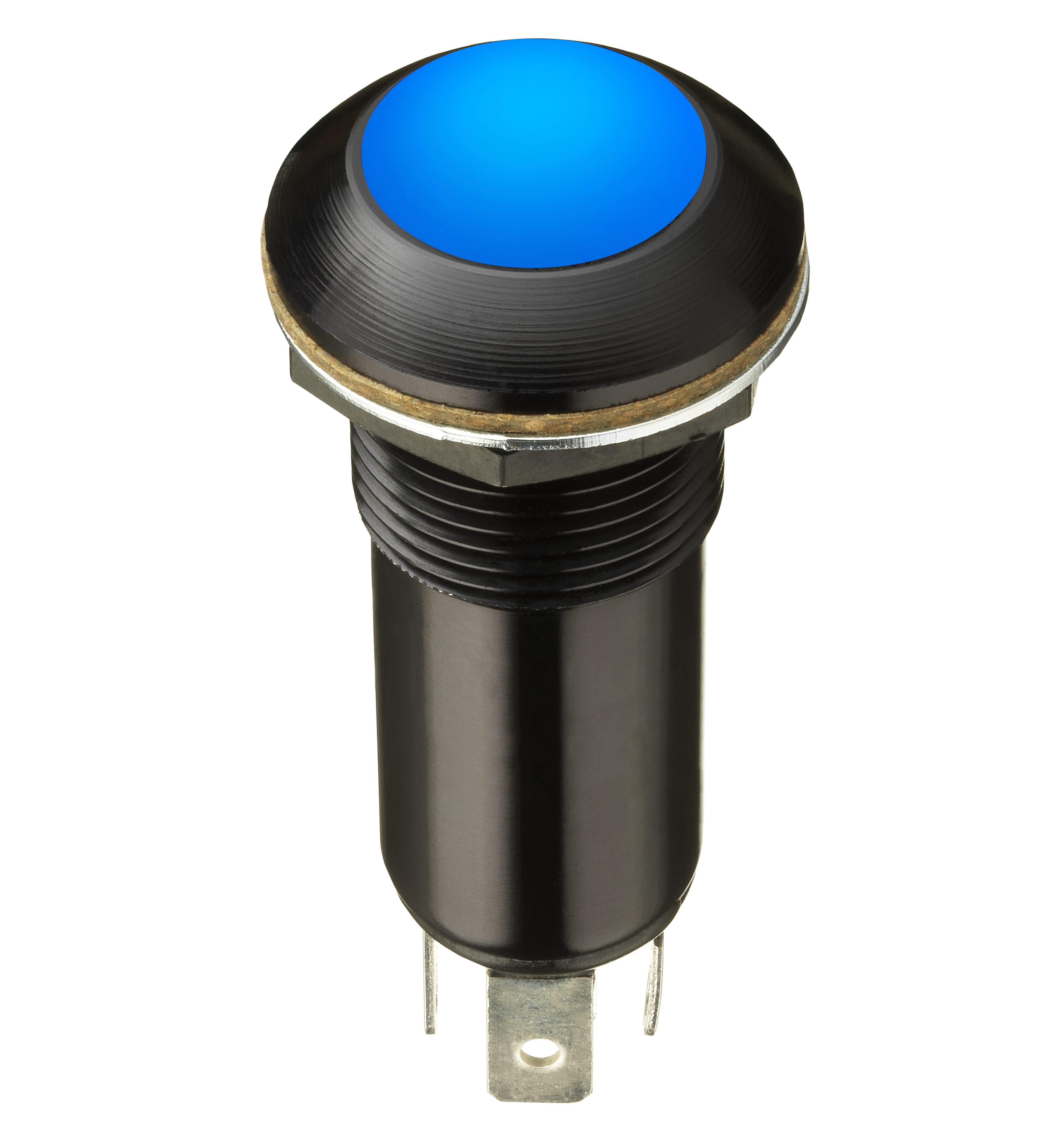

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12H223
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A12H223

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek design with a durable black aluminum housing and button. This high-quality switch is perfect for applications requiring a reliable and long-lasting solution. With an IP6K4S rating, it offers protection against dust and water ingress, making it suitable for use in harsh environments. The green LED illumination not only enhances visibility but also adds a modern touch to any panel. Designed for ease of installation, it features a panel mount configuration with solder termination. With a contact configuration of SPDT and a 5A current rating, it ensures efficient performance. The switch has a voltage rating of 115VAC and 28VDC, catering to a wide range of power requirements. Whether it's for industrial machinery, control panels, or automotive applications, the LP5-V series switch is the ideal choice for demanding environments.
