LP5-A12L223

OTTLP5_A12L223
Heilind Number:OTTLP5-A12L223
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12L223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

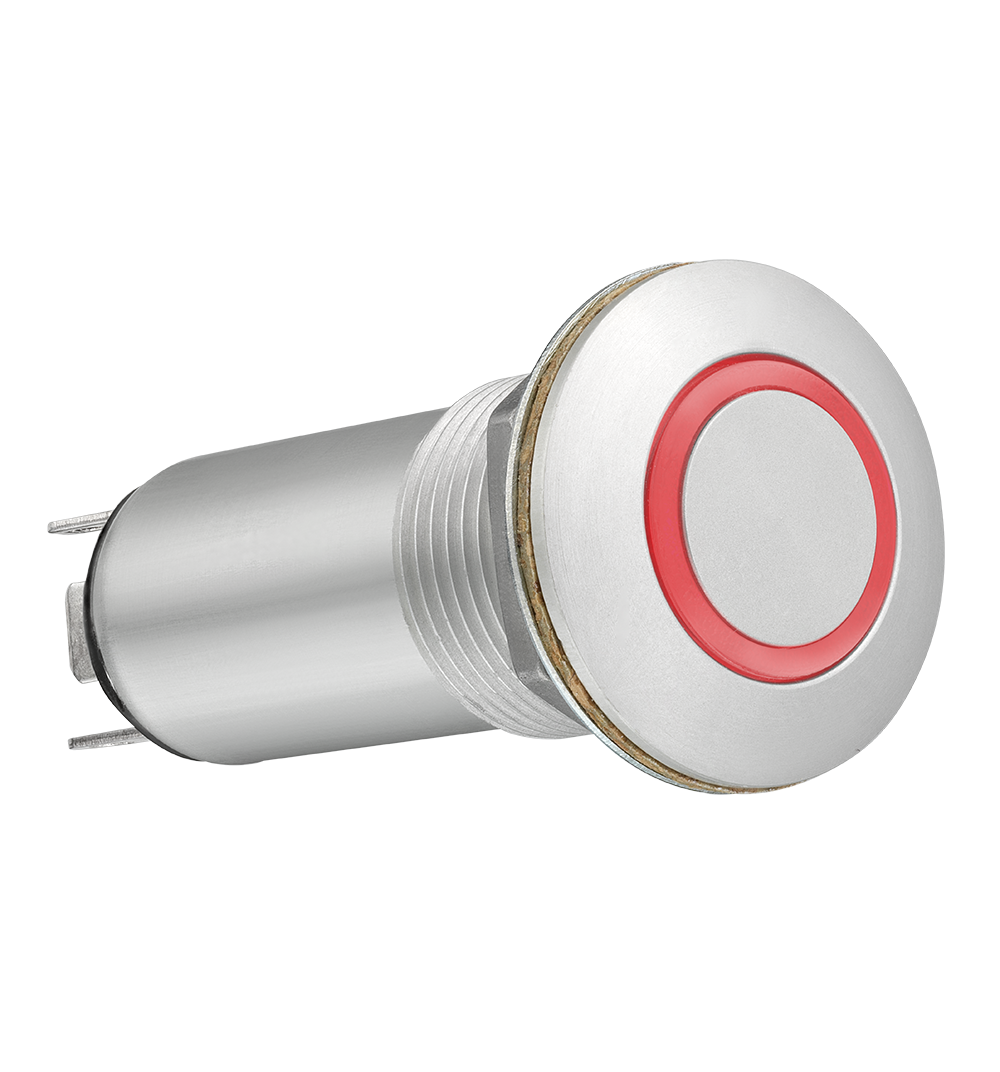

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12L223
Series:LP5-V
Cap Color:Black
IP Rating:IP6K4S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.1 in
Contact Plating:Silver
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A12L223

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, SKU LP5-A12L223. Featuring a sleek black housing with a matching cap, this button is designed for durability, with a rating of 25,000 cycles. The SPDT contact configuration and silver-plated brass contacts ensure reliable performance. Operating in temperatures ranging from -55°C to 85°C, this switch is suitable for a wide range of environments. With an IP6K4S rating, it offers protection against dust and water ingress. The green illumination, powered by a 24V voltage, provides clear visibility in low-light conditions. Panel mount installation and solder termination make it easy to integrate into your system. Ideal for applications requiring a high-quality, long-lasting pushbutton switch, the LP5-V Series is a trusted choice in the industry.
