LP5-A12Q221

OTTLP5_A12Q221
Heilind Number:OTTLP5-A12Q221
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12Q221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

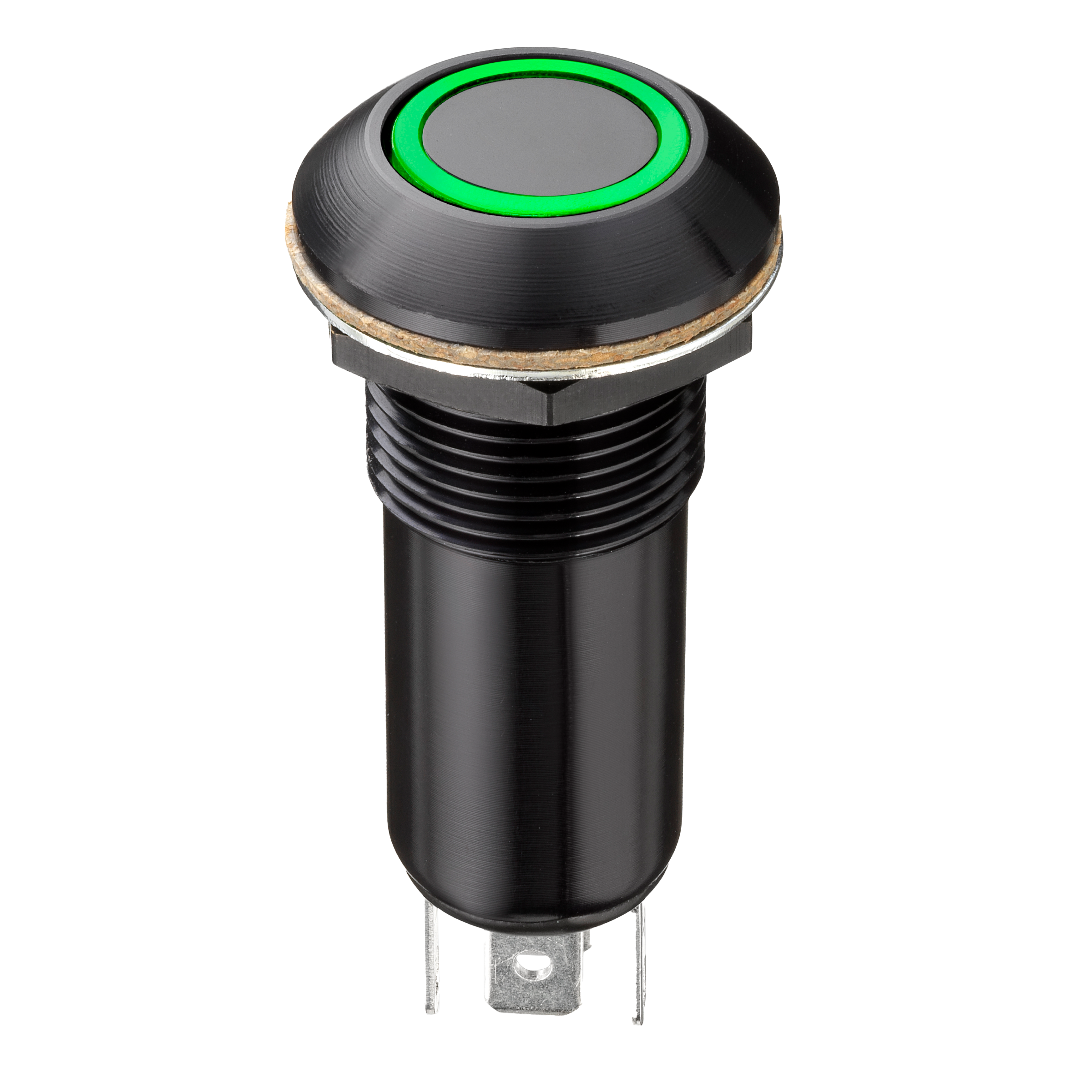

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12Q221
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.018 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-A12Q221

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, designed for durability and reliability in demanding environments. With a sleek black aluminum housing and a flat round actuator, this switch features a striking blue illumination for enhanced visibility. The SPDT contact configuration and 5A current rating ensure versatile functionality, while the sealed construction with an IP6K4S rating offers protection against dust and water ingress. Ideal for panel mounting, this switch is perfect for industrial and high-security applications. With a 25,000 cycle durability rating and wide operating temperature range from -55°C to 85°C, you can trust in its performance. Meet your switching needs with confidence with the LP5A12Q221.
