LP5-A12U221

OTTLP5_A12U221
Heilind Number:OTTLP5-A12U221
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12U221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

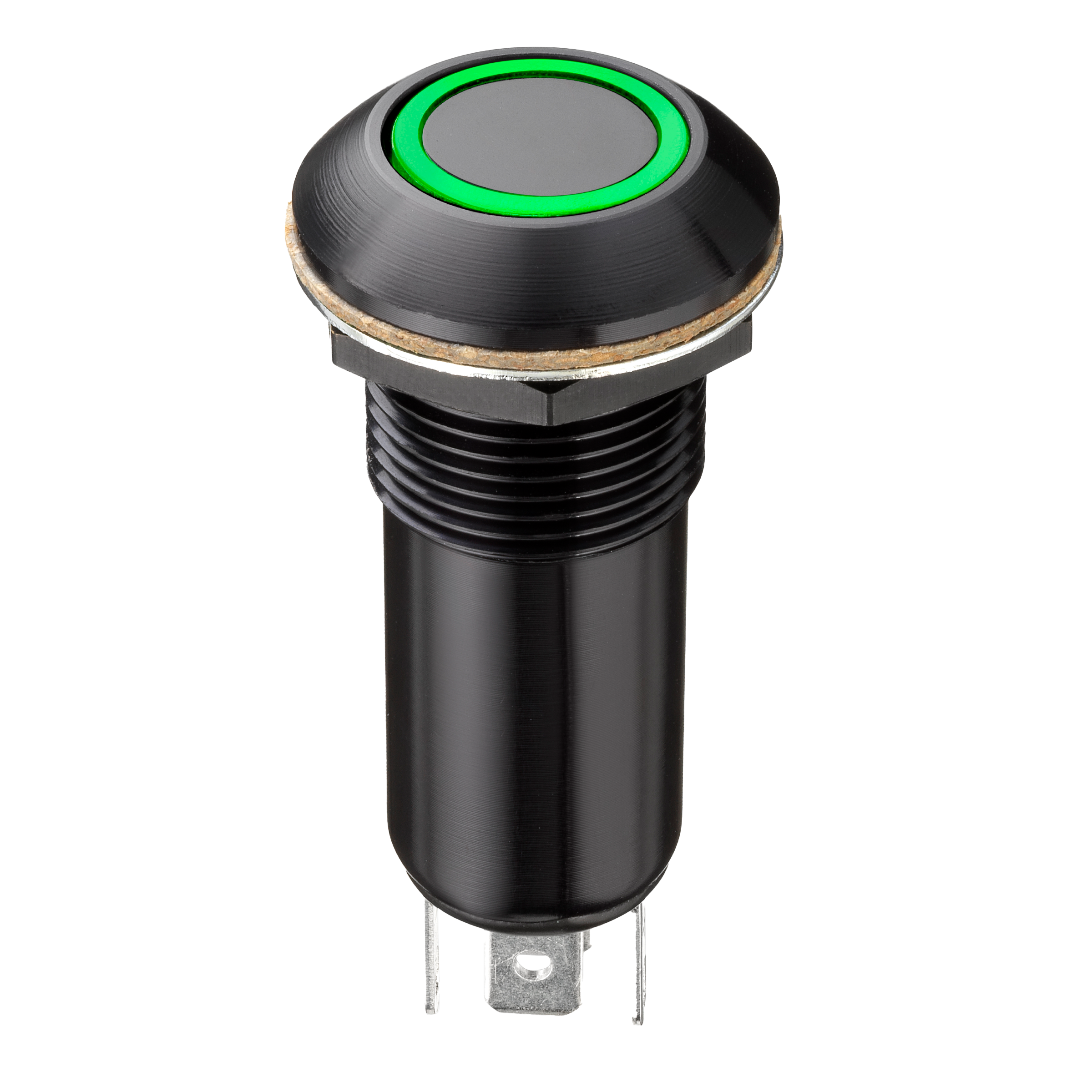

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12U221
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.018 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP5-A12U221

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, featuring a sleek black aluminum housing and durable construction for reliable performance in demanding environments. With an IP6K4S rating, this switch is sealed for protection against dust and water ingress. The flat round button actuator, illuminated in deep green with a 12V voltage, offers easy visibility in low-light conditions. The SPDT contact configuration and 5A current rating make it suitable for a variety of applications. Designed for panel mount installation with solder termination, the LP5-V is ideal for industrial control panels, machinery, and automotive use. With a high durability rating of 25,000 cycles and an operating temperature range from -55°C to 85°C, this switch is built to last. Upgrade your equipment with the LP5-V for reliable and long-lasting performance.
