LP5-A12U222

OTTLP5_A12U222
Heilind Number:OTTLP5-A12U222
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A12U222
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

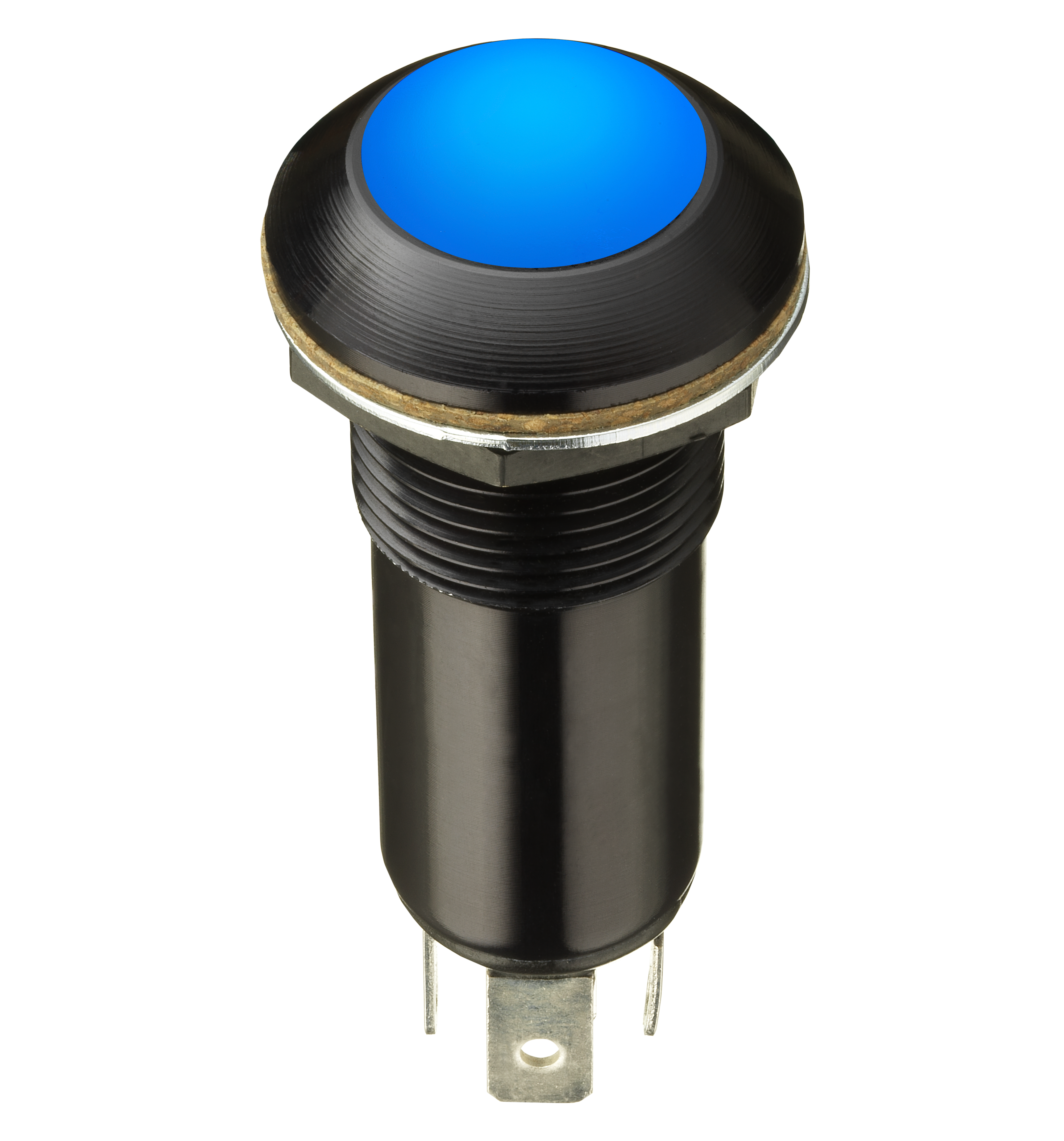

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A12U222
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.22 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Deep Green
Illumination Voltage:12 V
SKU:OTTLP5-A12U222

Detailed Description

This LP5-V series push button switch, SKU LP5-A12U222, is a durable and stylish choice for your panel-mounting needs. With a sleek black aluminum housing and deep green illuminated button, it combines functionality with aesthetics. The vandal-resistant design ensures long-lasting performance, with a high durability rating of 25,000 cycles. Featuring a round curved button actuator and a silver-plated brass contact material, it offers reliable operation in demanding environments. The switch has a contact configuration of SPDT and a voltage rating of 115VAC or 28VDC, making it suitable for a wide range of applications. Whether you need a momentary or alternate action switch, this illuminated push button is the perfect choice for industrial, automotive, or aerospace use. With a wide operating temperature range of -55°C to 85°C and an IP6K4S ingress protection rating, it can withstand harsh conditions with ease. Upgrade your control panel with this high-quality, sealed push button switch.
