LP5-A13B223

OTTLP5_A13B223
Heilind Number:OTTLP5-A13B223
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A13B223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

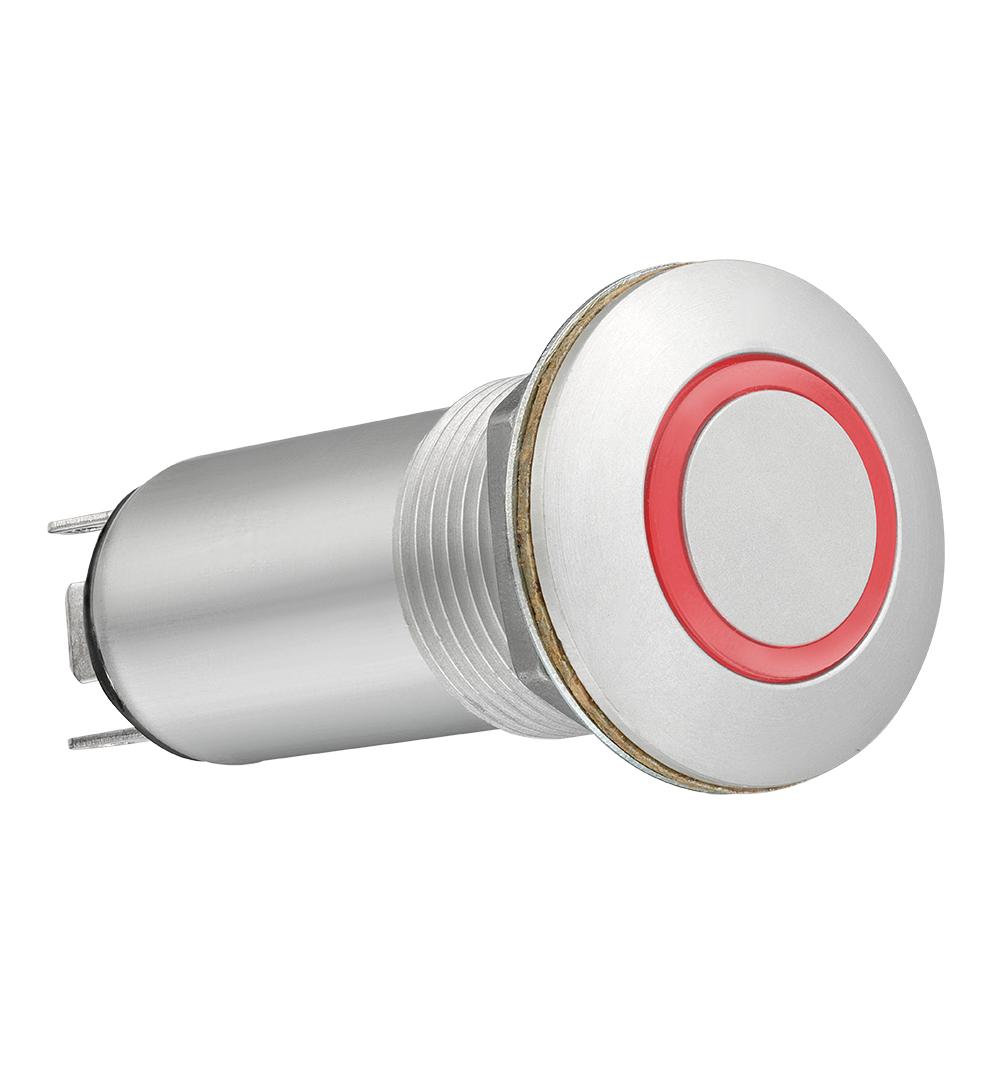

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A13B223
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP5-A13B223

Detailed Description

Introducing the LP5-V Series Sealed Vandal Resistant Pushbutton Switch, featuring a durable aluminum housing and a sleek black design. With an IP6K4S rating for dust and water resistance, this switch is perfect for outdoor and industrial applications. The illuminated button, in a vibrant green color, adds a touch of style while providing clear visibility. The gold-plated brass contacts ensure reliable conductivity, with a current rating of 10 mA at 5 VDC. Designed for panel mount installation, this switch is easy to integrate into your equipment. With a contact configuration of SPST-NO and an Off-On switch function, it offers precise control. Its rugged construction and high durability rating of 200,000 cycles make it ideal for heavy-duty use, even in harsh environments. Upgrade your equipment with the LP5-V Series Pushbutton Switch for reliable performance and enhanced aesthetics.
