LP5-A13B312

OTTLP5_A13B312
Heilind Number:OTTLP5-A13B312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A13B312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

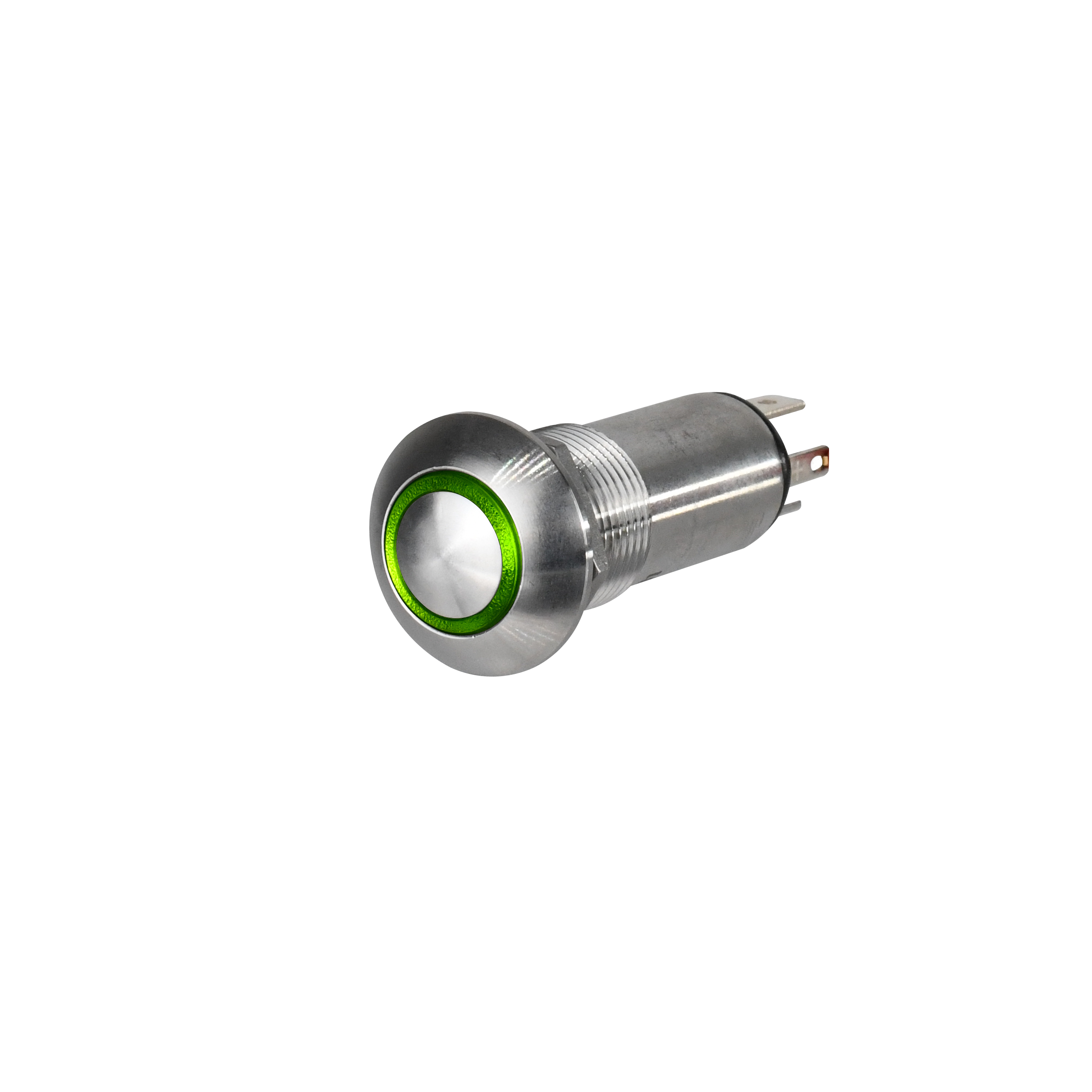

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A13B312
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:2 V
SKU:OTTLP5-A13B312

Detailed Description

Introducing the LP5-V Series Sealed Illuminated Vandal Resistant Pushbutton Switch, LP5-A13B312. This durable switch, with a housing made of aluminum and an actuator crafted from the same material, features a sleek silver design perfect for panel mounting. The curved round button actuator, with a length of .22 inches, offers a satisfying tactile response. Its green illumination, powered by a 2V voltage, adds a stylish touch while indicating the switch's status. With a contact configuration of SPST-NO and a contact material of brass plated with gold, this switch ensures reliable performance. Rated for a current of 10mA and a voltage of 5VDC, it is suitable for various applications. Operating in temperatures ranging from -55°C to 85°C, and with a durability rating of 200,000 cycles, this switch guarantees long-term functionality. Ideal for use in demanding environments, it combines high performance with a user-friendly design, making it a standout choice in the Push Button Switches category.
