LP5-A31G325

OTTLP5_A31G325
Heilind Number:OTTLP5-A31G325
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A31G325
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

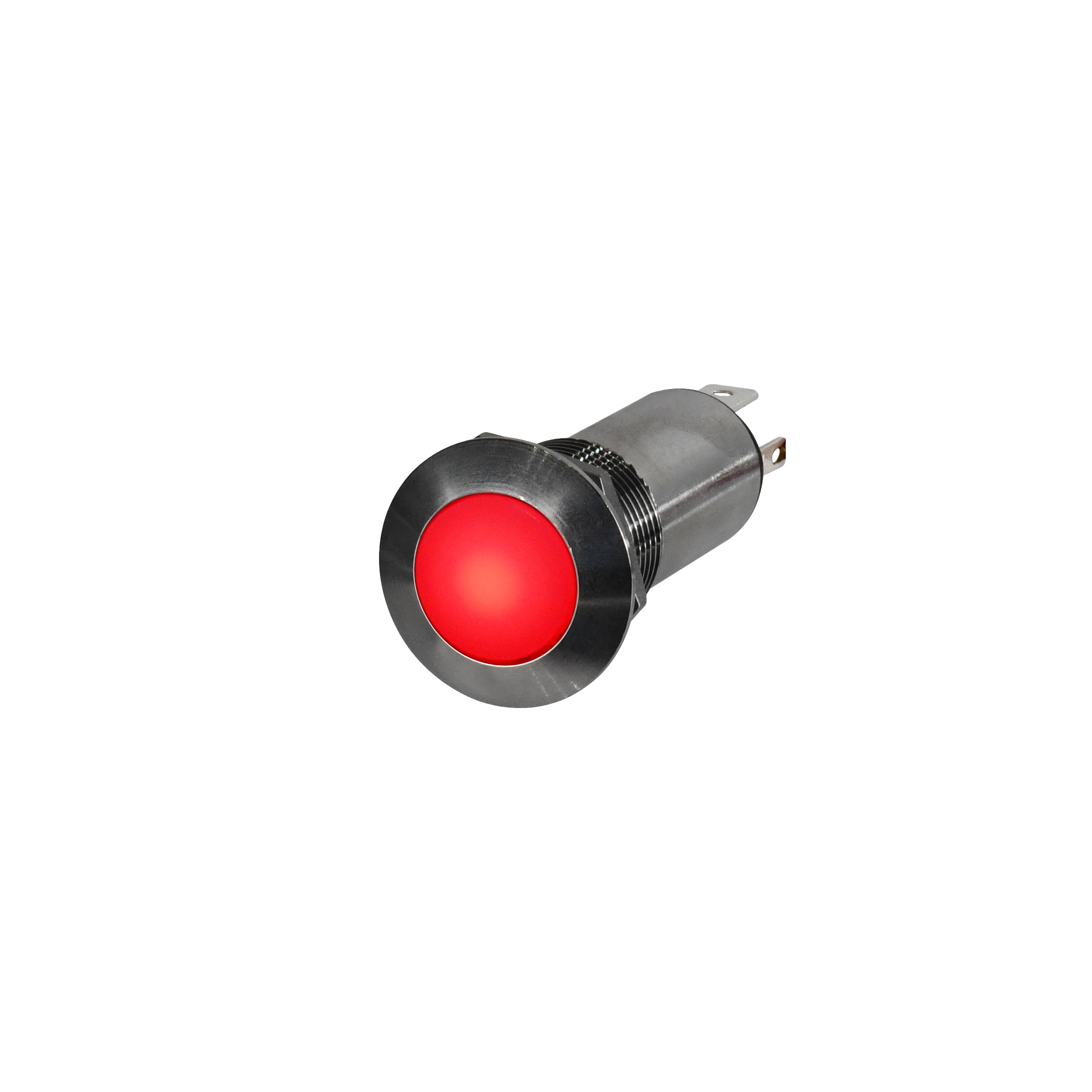

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A31G325
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-A31G325

Detailed Description

The LP5-V Series Vandal Resistant Pushbutton Switch, SKU LP5-A31G325, is a durable and reliable solution for your panel-mounted switch needs. Featuring a sleek black aluminum housing and black button cap, this illuminated switch is both stylish and functional. With an IP6K8S rating, it is dust-tight and can withstand high-pressure water jets, making it ideal for outdoor or industrial applications. The red LED illumination ensures visibility in low-light environments, while the 12V illumination voltage and SPST-NO contact configuration provide efficient operation. With a 5A current rating, 25,000 cycle durability, and operating temperatures ranging from -55°C to 85°C, this switch is built to last. Perfect for use in hi-rel situations, it offers reliable performance in demanding environments. Experience the convenience and quality of the LP5-V Series Vandal Resistant Pushbutton Switch.
