LP5-A31H312

OTTLP5_A31H312
Heilind Number:OTTLP5-A31H312
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A31H312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

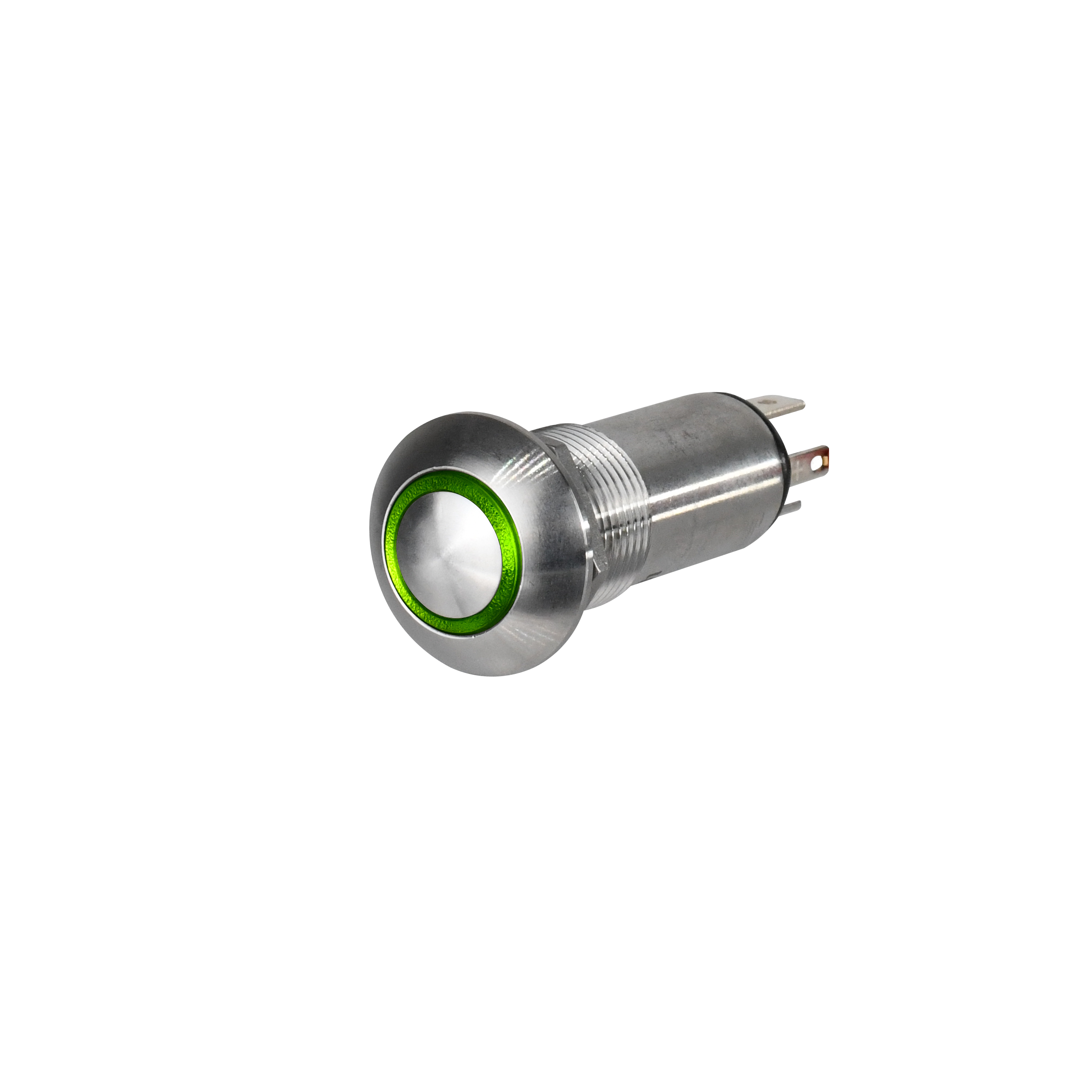

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A31H312
Series:LP5-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Illuminated
Actuator Type:Button (Curved)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.22 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-A31H312

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Pushbutton Switch, designed for durability and reliability in demanding environments. This sleek silver switch features a round, curved button actuator made of aluminum, with a green LED illumination for clear visibility. With an IP6K8S sealing rating, it is protected against dust and water ingress, making it ideal for outdoor or industrial applications. The SPST-NO contact configuration and brass contact material ensure efficient and low-resistance switching, while the 5A current rating and 115VAC/28VDC voltage ratings provide versatility in power requirements. Panel mountable with solder termination, this switch offers easy installation. With a 25,000-cycle durability rating and an operating temperature range of -55°C to 85°C, it guarantees long-lasting performance even in harsh conditions. Trust the LP5-V for robust and illuminated control in your design.
