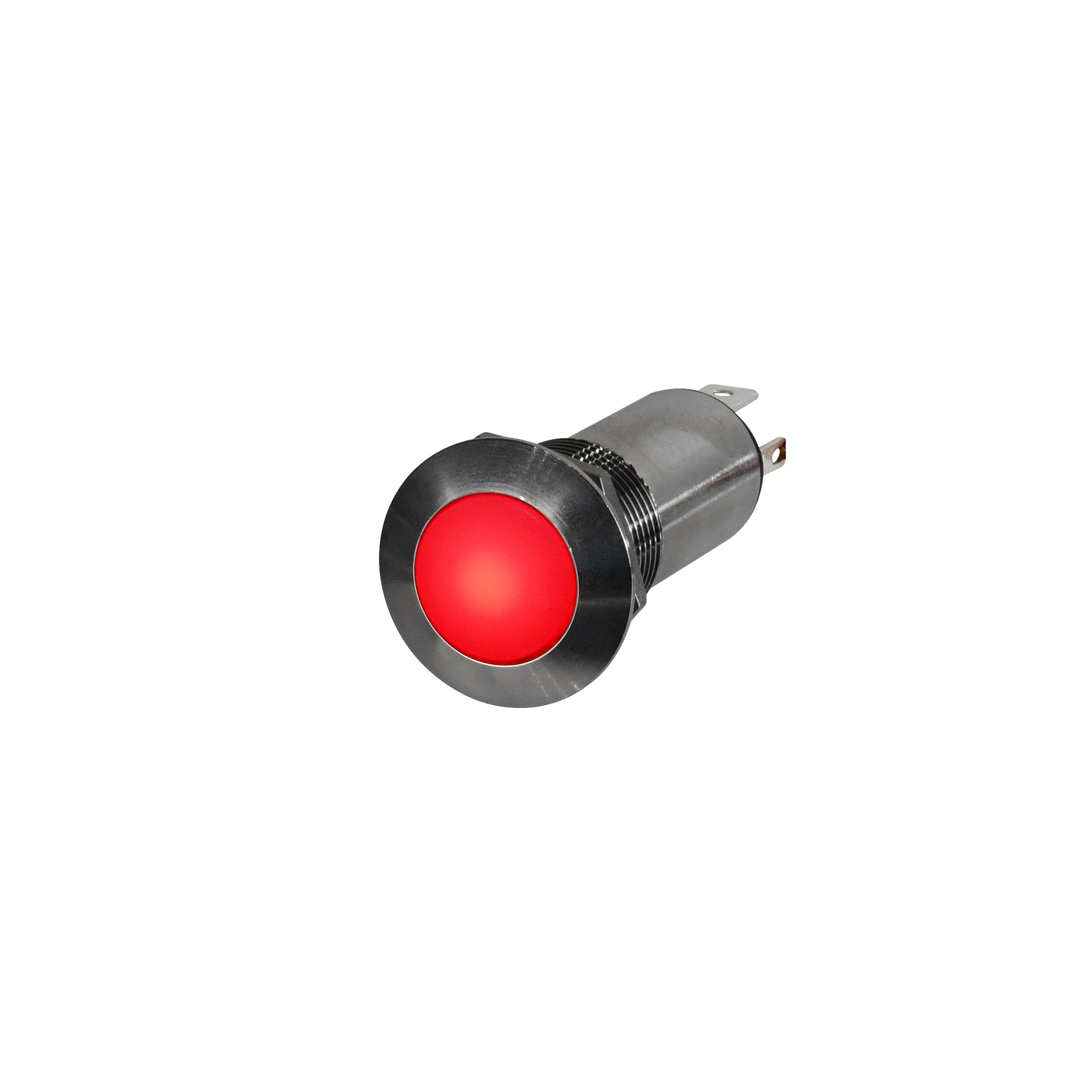

LP5-A31H325

OTTLP5_A31H325
Heilind Number:OTTLP5-A31H325
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A31H325
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A31H325
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A31H325

Detailed Description

The LP5-A31H325 is a rugged and reliable push button switch designed for demanding environments. With its RoHS compliance and IP6K8S rating, it ensures both environmental friendliness and protection against dust and water ingress. The black aluminum housing and cap, along with a durable construction rated for 25,000 cycles, guarantee longevity even in harsh conditions. This illuminated, vandal-resistant switch features a flat round button actuator, making it easy to operate. Supporting a current rating of 5A and voltage ratings of 115VAC and 28VDC, it is suitable for a variety of applications. The green LED illumination adds visibility, while the SPST-NO contact configuration provides reliable performance. Whether for industrial machinery or outdoor equipment, this sealed push button switch offers secure and efficient control.
