LP5-A31K324

OTTLP5_A31K324
Heilind Number:OTTLP5-A31K324
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A31K324
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

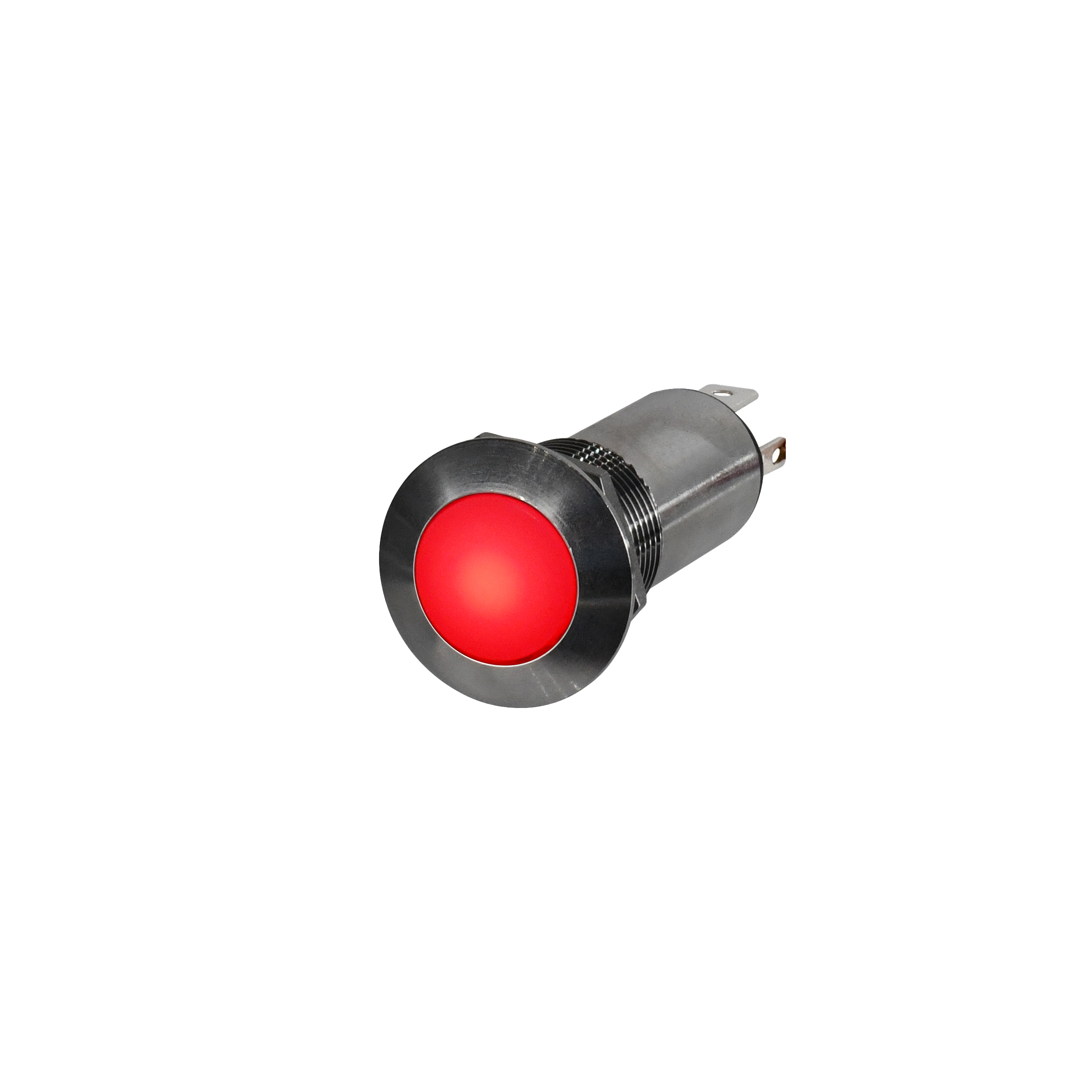

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A31K324
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.13 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-A31K324

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, featuring a sleek Black design with a Red illumination for easy visibility. With an IP6K8S rating, this switch is highly durable and suitable for a wide range of applications. The Off-On switch function, along with a SPST-NO contact configuration, ensures reliable performance. Made with high-quality materials like Aluminum housing and Brass contacts, it guarantees longevity even in harsh environments. Ideal for panel mount installation, this switch offers a current rating of 5A and voltage ratings of 115VAC and 28VDC. Its solder termination type and actuator shape make it easy to use, while the 25,000-cycle durability rating proves its robustness. From industrial machinery to consumer electronics, this LP5A31K324 switch is the perfect choice for demanding environments.
