LP5-A31Q225

OTTLP5_A31Q225
Heilind Number:OTTLP5-A31Q225
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A31Q225
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

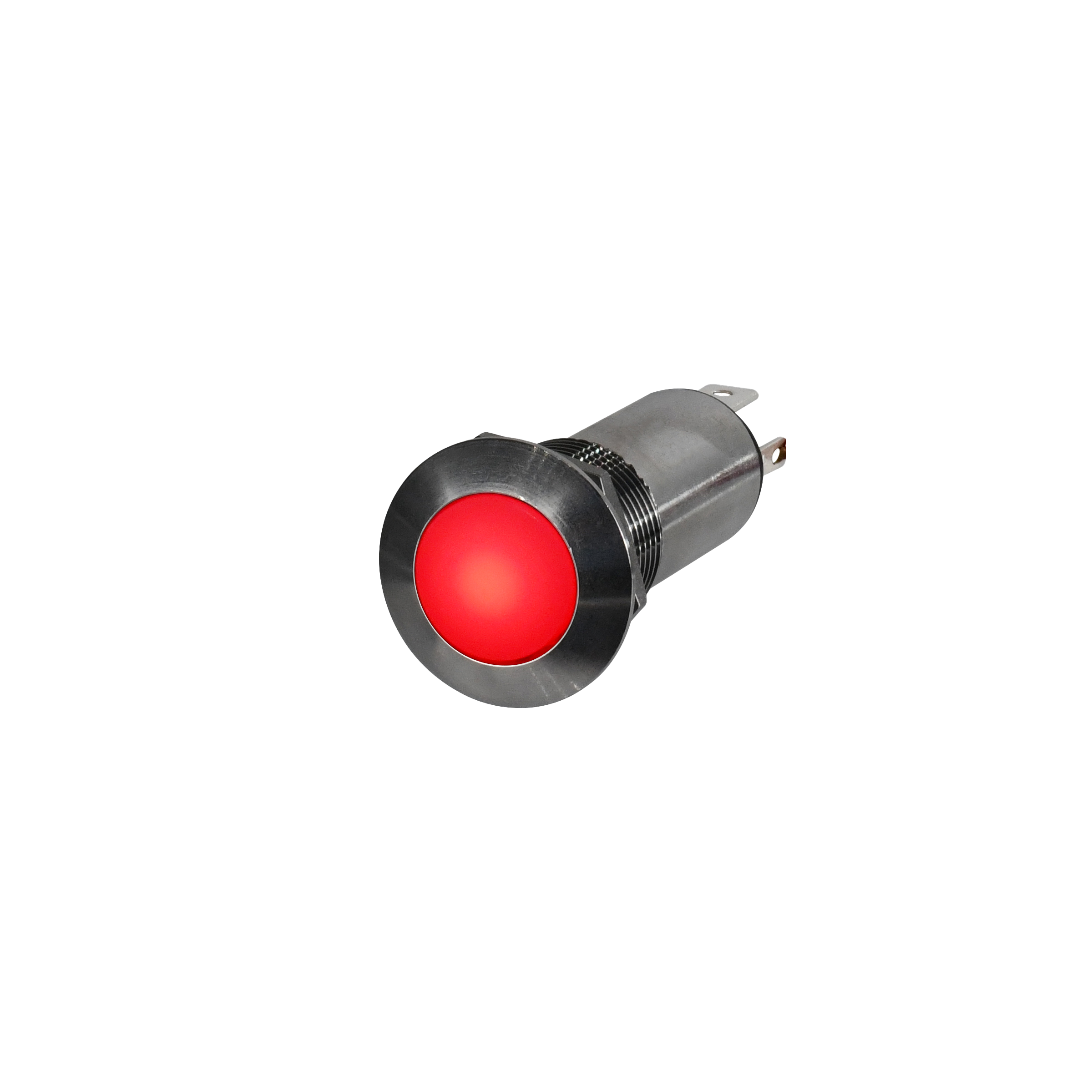

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A31Q225
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-A31Q225

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, designed for durable and reliable performance in a variety of applications. With a sleek black housing and matching button, this switch features a round flat actuator for easy operation. The blue illumination adds a modern touch while the IP6K4S sealing ensures protection against dust and water ingress. The SPST-NO contact configuration offers dependable switching, with a 5A current rating and 115VAC/28VDC voltage ratings. Whether for industrial machinery, automotive controls, or outdoor equipment, this panel-mount switch is built to withstand harsh environments with a durability rating of 25,000 cycles. Trust in the quality and functionality of the LP5A31Q225 for your next project.
