LP5-A51Q314

OTTLP5_A51Q314
Heilind Number:OTTLP5-A51Q314
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A51Q314
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

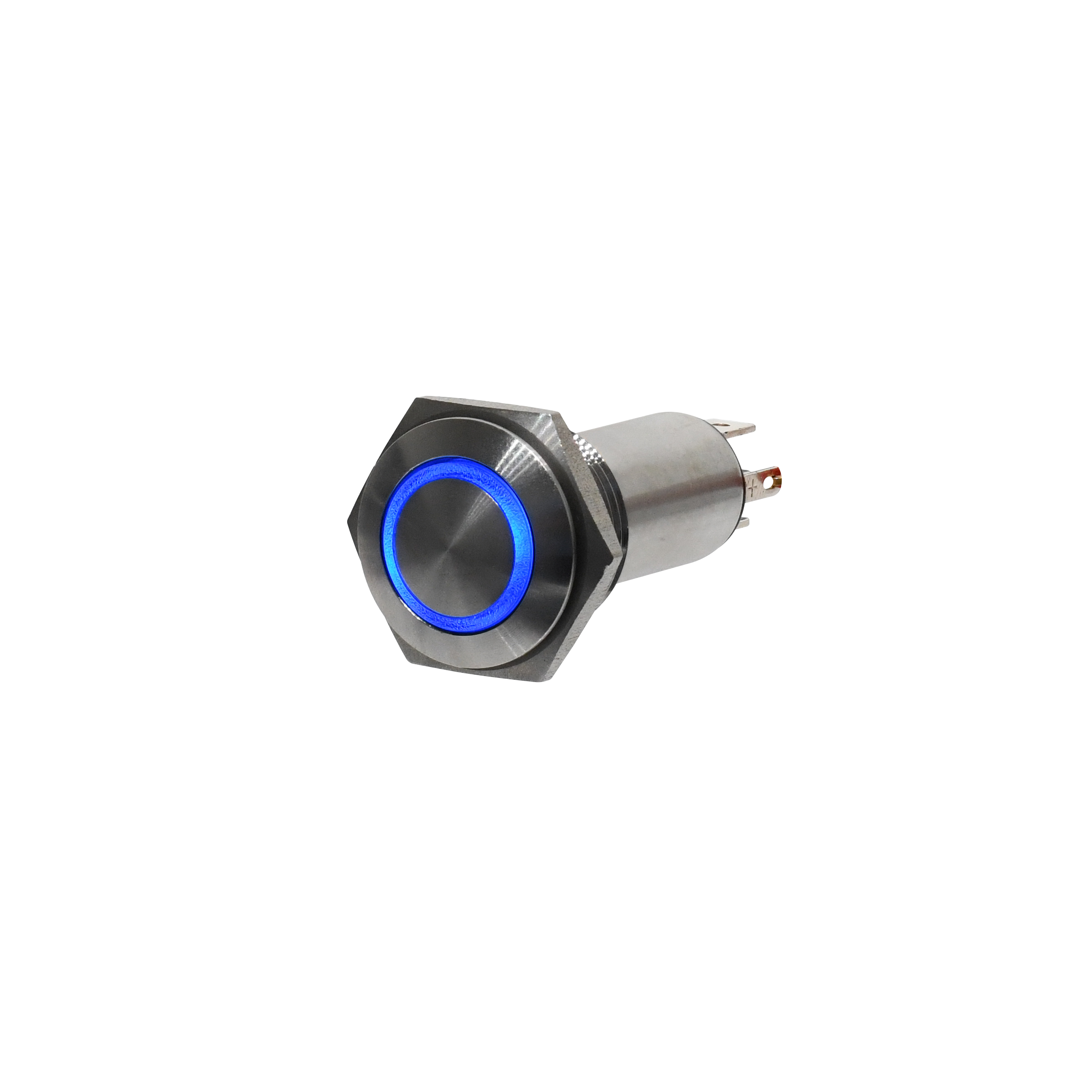

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A51Q314
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-A51Q314

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, featuring a sleek silver design with a curved round button actuator for easy operation. This high-quality switch is sealed for durability and reliability, with a 25,000 cycle lifespan. It offers a 5A current rating and SPST-NO contact configuration, making it suitable for a variety of applications. With an IP6K8S rating for water and dust resistance, along with a wide operating temperature range from -55°C to 85°C, this switch is built to perform in harsh environments. The blue illumination, powered by a 12V voltage, adds a stylish touch while enhancing visibility. Panel mount installation and solder termination ensure secure and stable connectivity. Perfect for use in industrial, automotive, and aerospace settings, this vandal-resistant switch is a dependable choice for your control panel needs.
