LP5-A51Q324

OTTLP5_A51Q324
Heilind Number:OTTLP5-A51Q324
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A51Q324
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

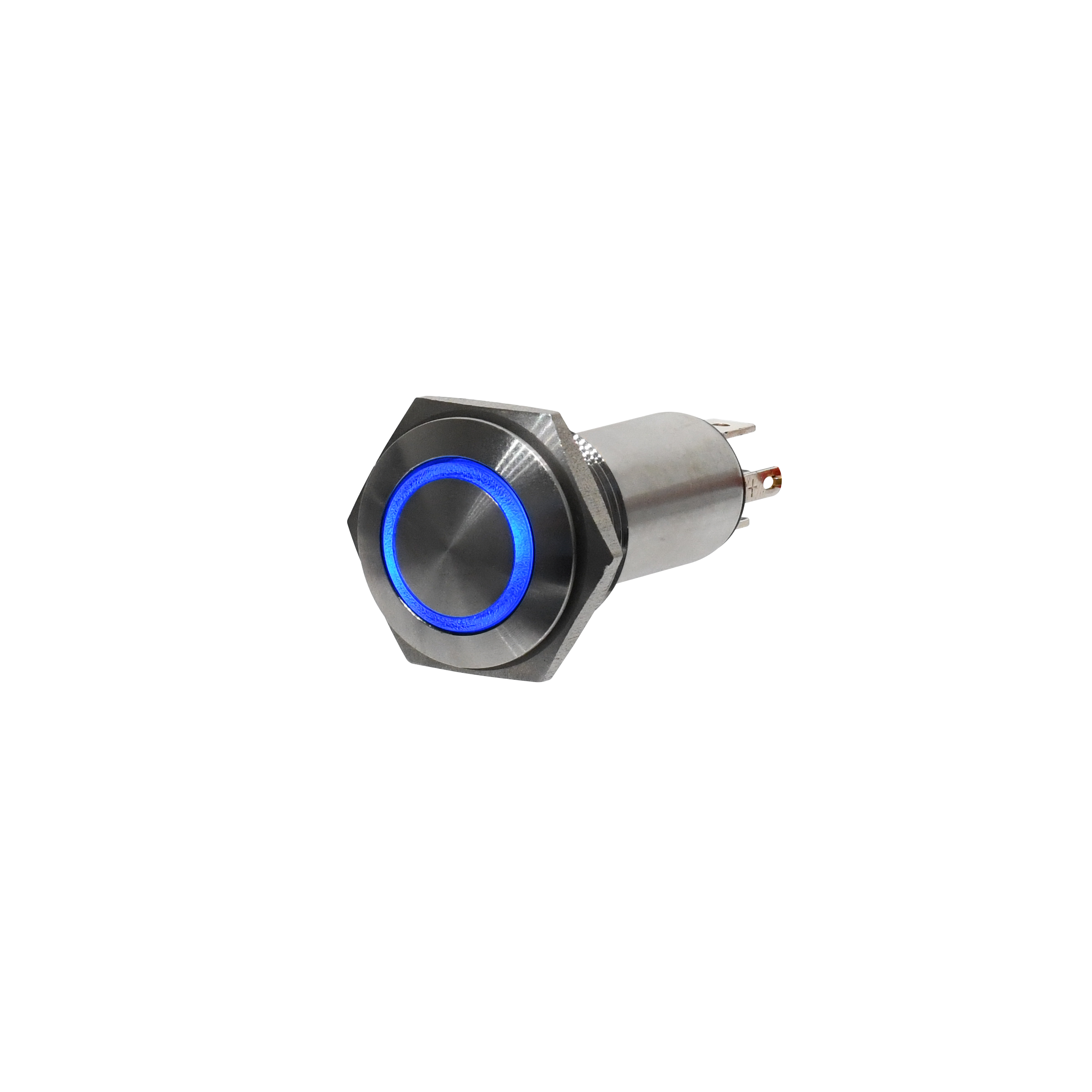

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A51Q324
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.13 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-A51Q324

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Pushbutton Switch, featuring a durable aluminum housing and a sleek black case with a silver cap. This high-performance switch is designed for panel mount installation, with a 5A current rating and a contact configuration of SPST-NO for reliable operation. The round, curved button actuator, made of aluminum, is complemented by blue illumination for easy visibility. With an IP6K8S rating and sealed construction, it ensures protection against dust and water ingress. Ideal for industrial applications, this switch offers a long-lasting durability of 25,000 cycles. Operating at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, it guarantees reliable performance in diverse environments. Upgrade your control systems with the LP5-V, the ultimate solution for rugged and illuminated pushbutton switching.
