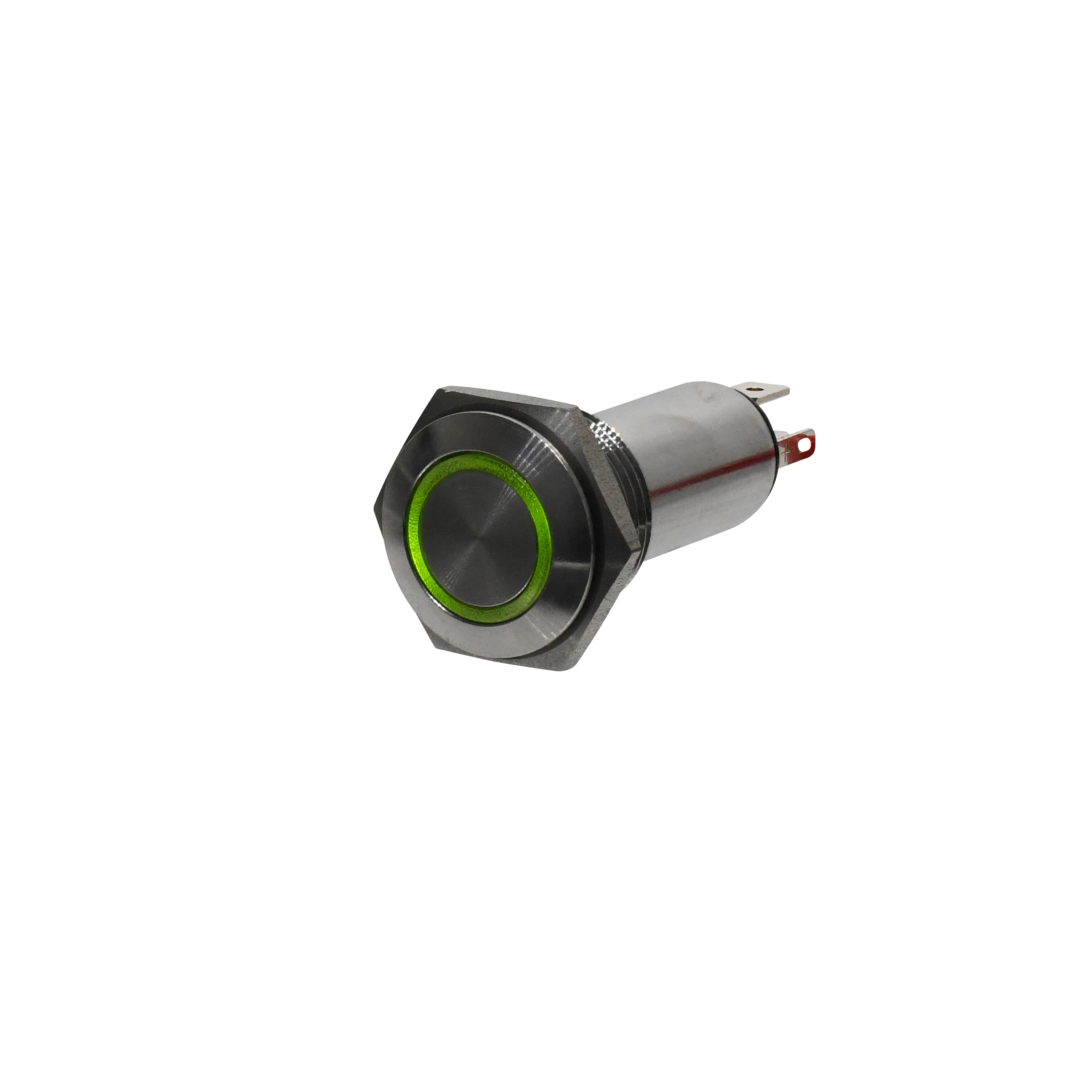

LP5-A52G313

OTTLP5_A52G313
Heilind Number:OTTLP5-A52G313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A52G313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A52G313
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:12 V
SKU:OTTLP5-A52G313

Detailed Description

The LP5-V series features the rugged and stylish LP5-A52G313 push button switch, designed for durability in demanding environments. With a sleek silver case and cap, this switch offers a high level of vandal resistance. The aluminum housing and actuator material ensure longevity, while the IP6K8S rating guarantees protection against dust and water ingress. Featuring a red illuminated button, the switch is easily identifiable in low-light conditions. Its SPDT contact configuration and 5A current rating make it suitable for a variety of applications. With a 25,000 cycle durability rating and a wide operating temperature range from -55°C to 85°C, the LP5-A52G313 is reliable in even the harshest conditions. Perfect for panel mounting, this switch is ideal for industrial, automotive, and outdoor use.
