LP5-A52H313

OTTLP5_A52H313
Heilind Number:OTTLP5-A52H313
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A52H313
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

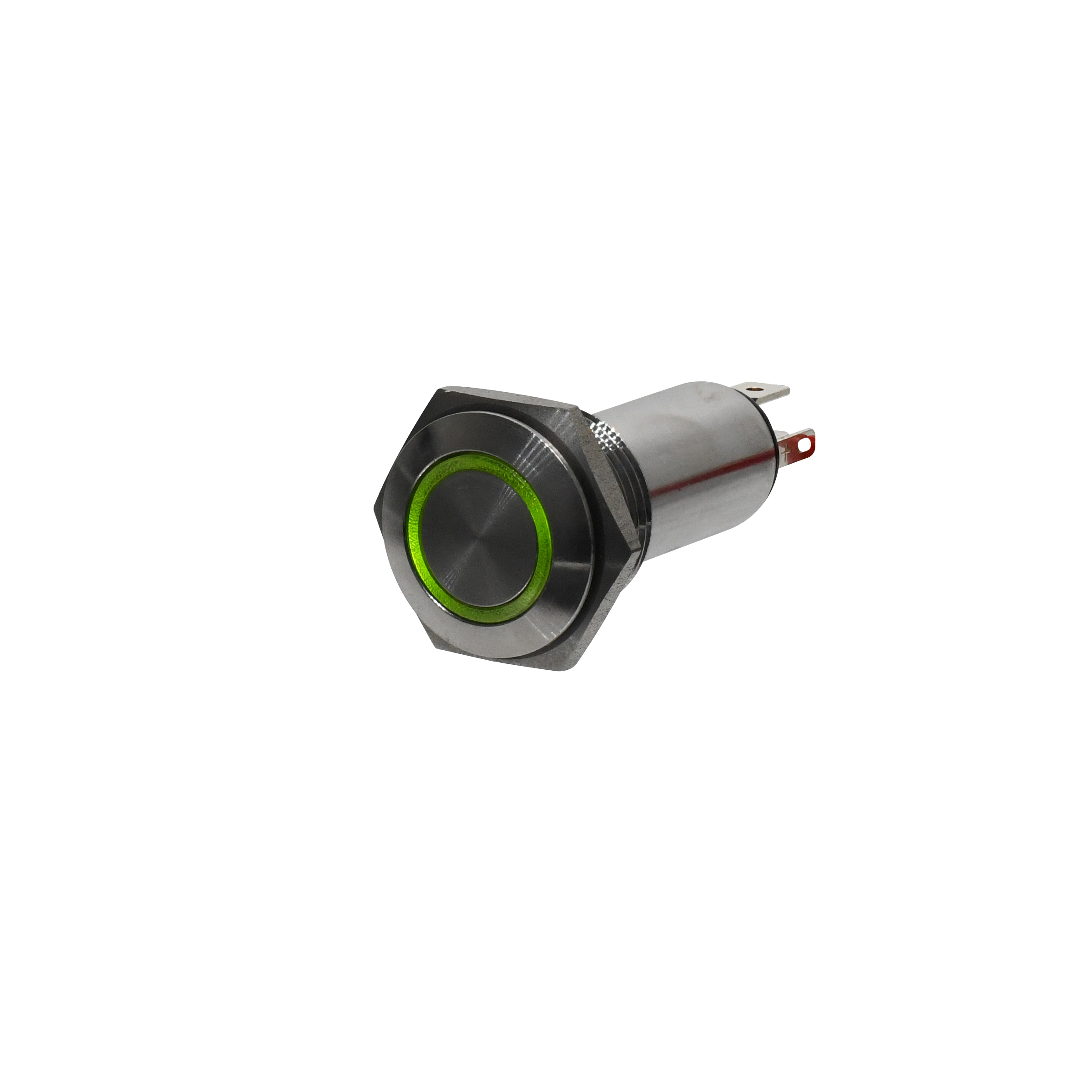

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A52H313
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.1 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A52H313

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch with the SKU LP5-A52H313. Featuring a sleek silver cap and case, this switch is designed for durability with a 25,000 cycle rating. The flat round button actuator, made of aluminum, offers a satisfying tactile response. With an IP6K8S rating, it is sealed against dust and water ingress, making it suitable for harsh environments. The SPDT contact configuration and silver contact plating ensure reliable performance. Illuminated with a vibrant green LED, it provides clear indication of operation. Ideal for panel mounting, it has a maximum operating temperature of 85°C and a wide voltage rating range of 115 VAC and 28 VDC. Perfect for applications requiring a high-quality, long-lasting pushbutton switch.
