LP5-A52K322

OTTLP5_A52K322
Heilind Number:OTTLP5-A52K322
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A52K322
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

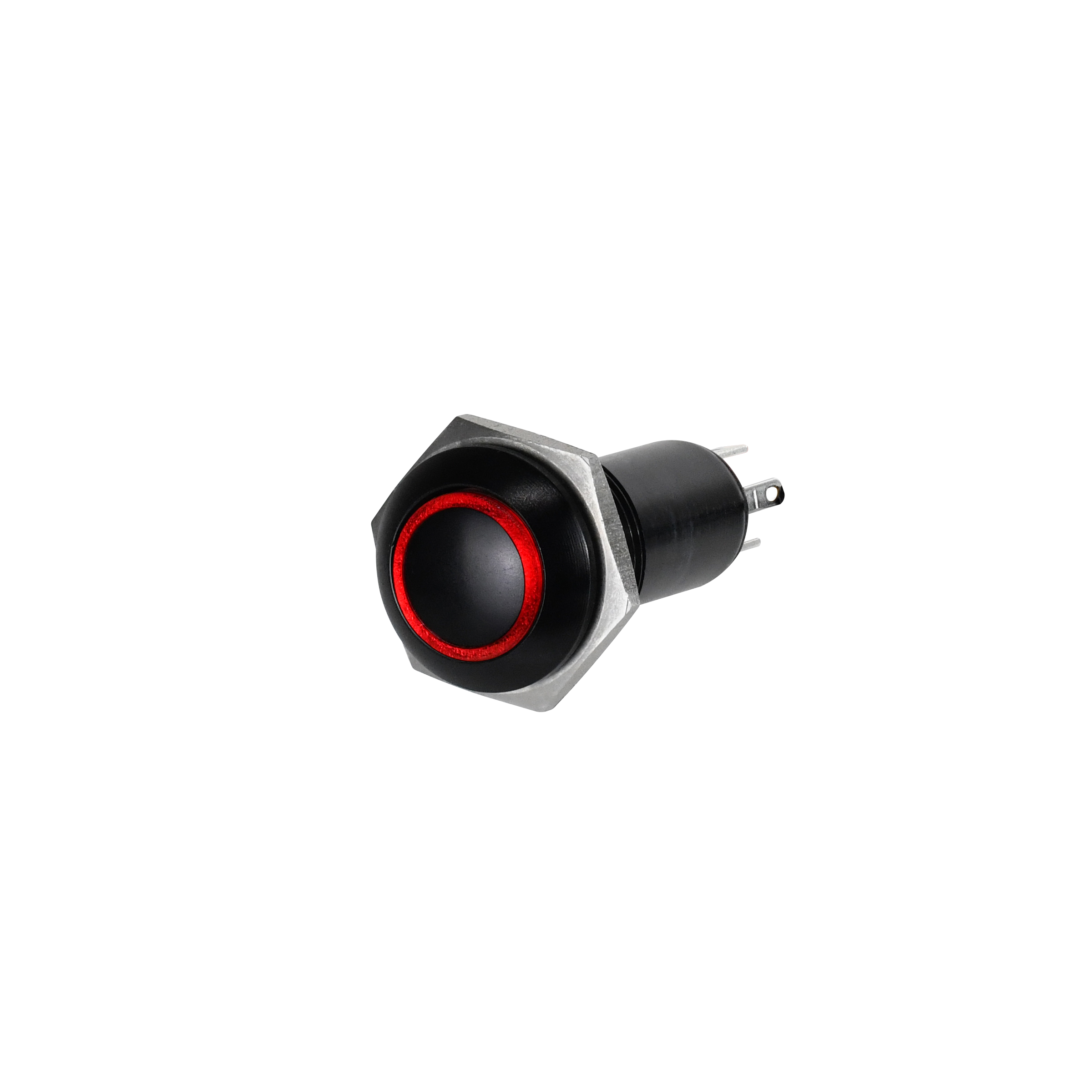

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A52K322
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.22 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-A52K322

Detailed Description

Introducing the LP5-V series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch with SKU LP5-A52K322. This rugged and durable switch features a sleek black housing and black button, making it ideal for use in a variety of industrial and commercial applications. With an IP6K8S rating, it offers reliable performance even in harsh environments. The red illumination provides clear visibility, while the 24 V illumination voltage ensures energy efficiency. The SPDT contact configuration and 5 A current rating make it suitable for a wide range of power control tasks. Panel mount installation and solder termination offer easy and secure setup. With a high durability rating of 25,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch guarantees long-lasting and reliable operation. Upgrade your control system with the LP5-V series pushbutton switch.
