LP5-A52V325

OTTLP5_A52V325
Heilind Number:OTTLP5-A52V325
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A52V325
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

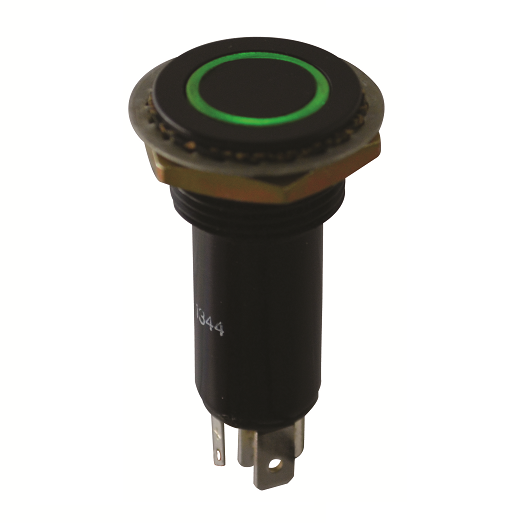

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A52V325
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:On-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:24 V
SKU:OTTLP5-A52V325

Detailed Description

The LP5-V Series Push Button Switch, LP5-A52V325, is a durable and versatile solution for your switching needs. Featuring a black aluminum housing and button, this switch is not only rugged and vandal-resistant but also stylish and modern. With an IP6K8S rating, it is fully sealed for protection against dust and water, making it suitable for a wide range of applications. The red illuminated button provides clear visibility, while the alternate action design ensures reliable and precise operation. With a current rating of 5A and voltage ratings of 115VAC and 28VDC, this switch is suitable for both AC and DC circuits. The SPDT contact configuration offers flexibility in connectivity, while the solder termination type makes installation a breeze. Operating temperature ranges from -55°C to 85°C, ensuring reliable performance even in harsh environments. Trust the LP5-V Series Push Button Switch for quality, durability, and performance.
