LP5-A71H315

OTTLP5_A71H315
Heilind Number:OTTLP5-A71H315
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A71H315
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

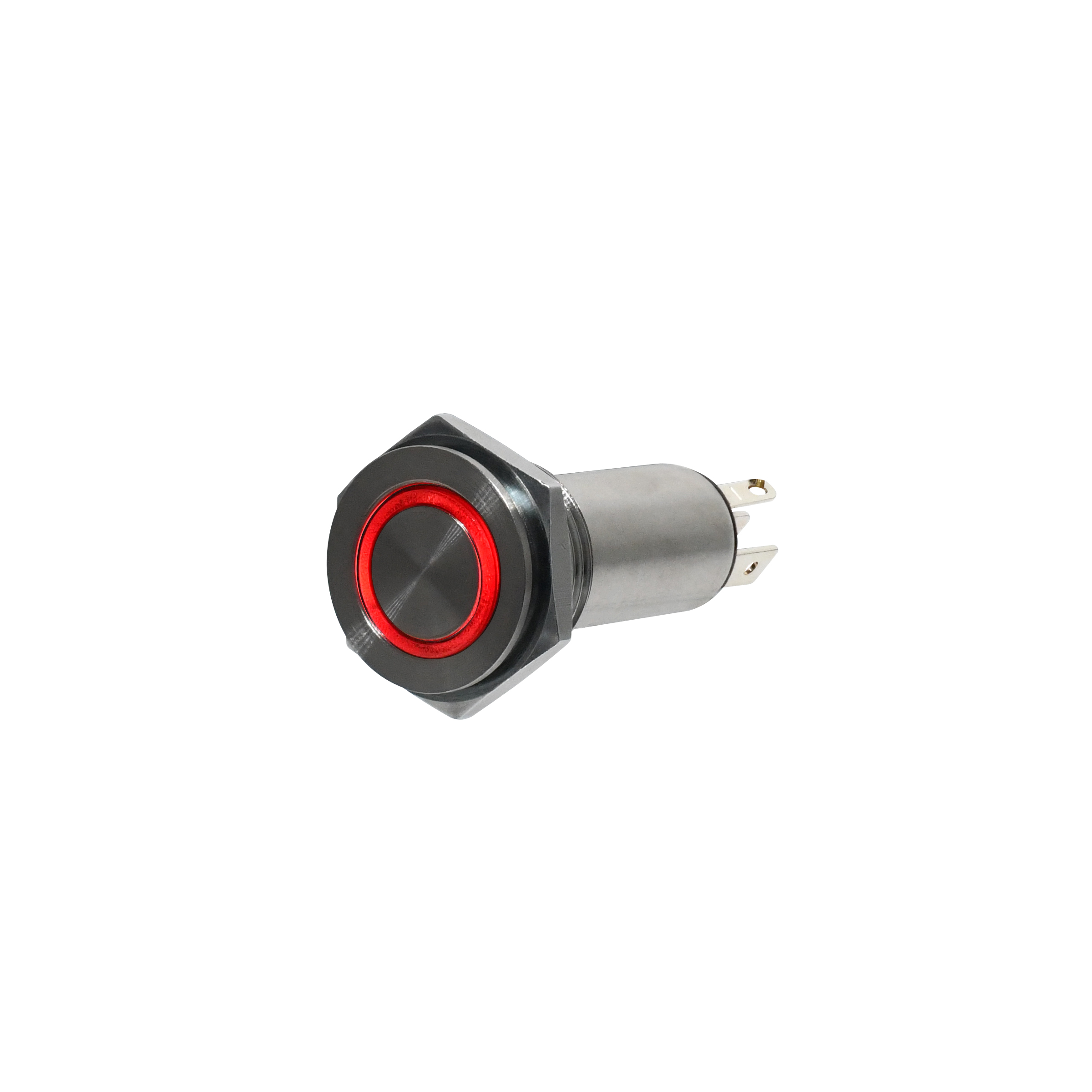

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A71H315
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Silver
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A71H315

Detailed Description

The LP5-A71H315 Pushbutton Switch is a sleek and durable solution for your control panel needs. With a stunning silver cap and case, this switch adds a touch of sophistication to any setup. Its IP6K8S rating ensures reliable performance even in harsh environments. The illuminated button, in a vibrant green color, not only looks stylish but also helps with easy visibility. Crafted with high-quality materials like aluminum housing and brass contacts, this switch is built to last. Featuring a SPST-NO contact configuration and Off-On switch function, it guarantees precise and efficient operation. Suitable for both AC and DC applications, with voltage ratings of 115V and 28V respectively, it offers versatility in usage. With a wide operating temperature range from -55°C to 85°C, it is suitable for various industrial settings. The solder termination type makes installation a breeze. Designed for 25,000 cycles of durability, this switch is a reliable choice for your needs. Upgrade to the LP5-A71H315 for a high-performance, vandal-resistant pushbutton switch that meets your exacting standards.
