LP5-A71H325

OTTLP5_A71H325
Heilind Number:OTTLP5-A71H325
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A71H325
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

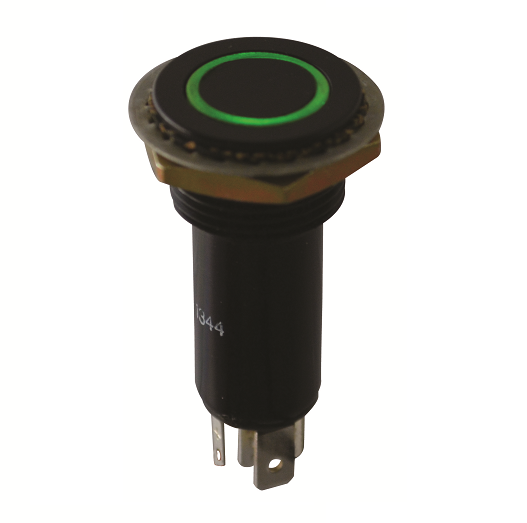

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A71H325
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A71H325

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Pushbutton Switch, SKU LP5-A71H325. Designed for durability with a 25,000 cycle rating, this switch is perfect for high-use environments. Featuring a sleek black aluminum housing and flat round button actuator, it offers a modern and vandal-resistant design. The green LED illumination ensures easy visibility, while the SPST-NO contact configuration provides reliable performance. With an IP6K8S rating, this switch is sealed against dust and water ingress, making it suitable for outdoor and industrial applications. Panel mount installation and solder termination ensure easy and secure setup. Operating at temperatures ranging from -55°C to 85°C and with a voltage rating of 115VAC/28VDC, it is suitable for a wide range of applications. Upgrade your control panel with this high-quality, long-lasting pushbutton switch.
