LP5-A71L323

OTTLP5_A71L323
Heilind Number:OTTLP5-A71L323
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A71L323
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

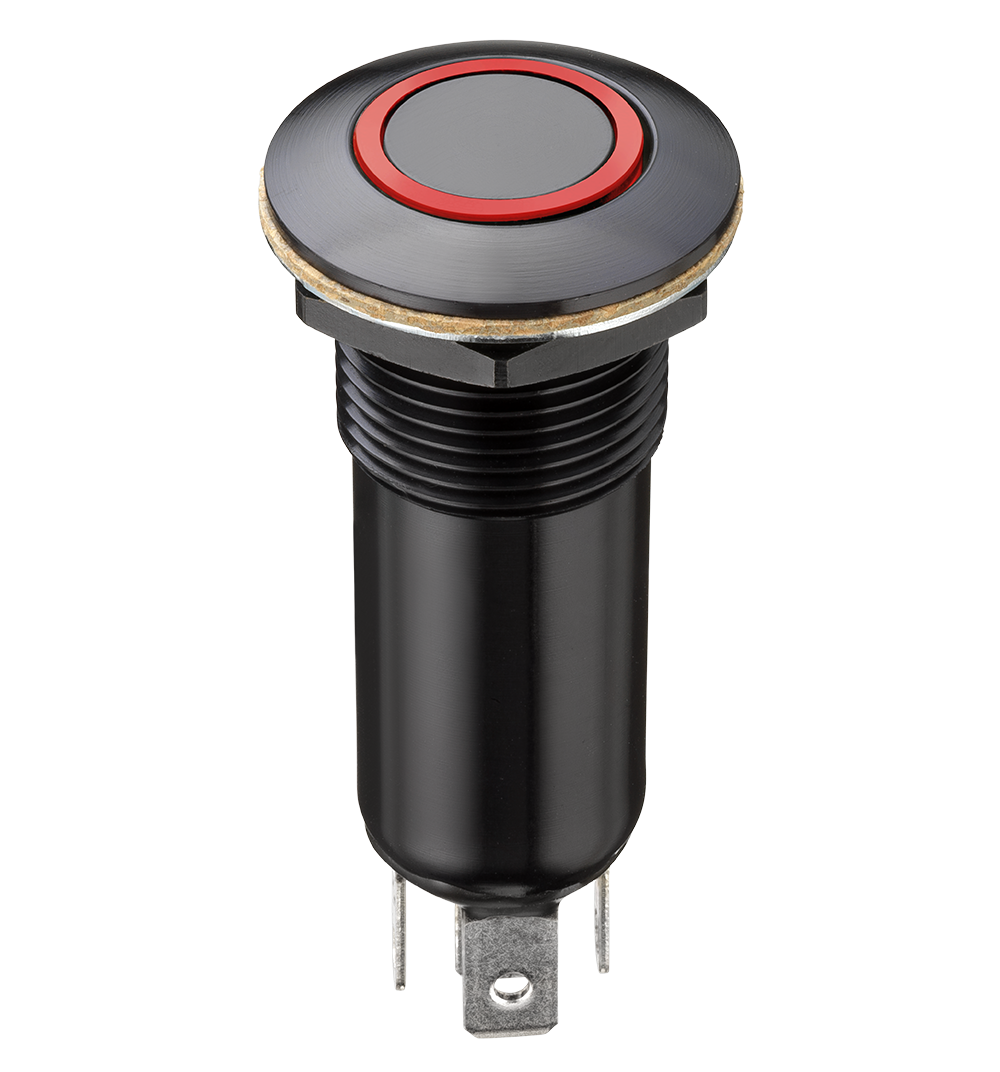

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A71L323
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-A71L323

Detailed Description

The LP5-V series pushbutton switch, SKU LP5-A71L323, is a durable and reliable solution for your panel mount control needs. With a sleek black aluminum housing and matching black cap, it offers a stylish yet rugged design. Featuring a green illuminated button with a vandal-resistant aluminum actuator, this switch is perfect for high-visibility applications. The Off-On switch function and SPST-NO contact configuration ensure efficient operation, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a variety of power requirements. With a high IP6K8S ingress protection rating and a wide operating temperature range from -55°C to 85°C, this switch is built to withstand harsh environments. Trust in the LP5-V series for long-lasting performance in industrial, automotive, or aerospace applications.
