LP5-A71L325

OTTLP5_A71L325
Heilind Number:OTTLP5-A71L325
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A71L325
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

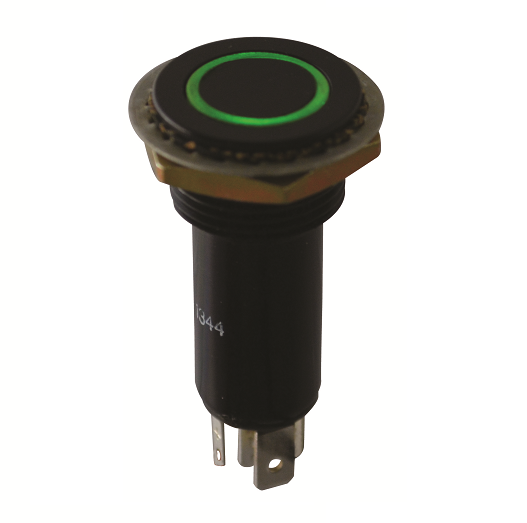

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A71L325
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.05 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):25,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:24 V
SKU:OTTLP5-A71L325

Detailed Description

Introducing the LP5-V Series Illuminated Vandal Resistant Aluminum Alternate Action Pushbutton Switch, featuring a durable construction with a black aluminum housing and actuator for enhanced durability. This panel mount switch is designed for reliability in harsh environments, with an IP6K8S ingress protection rating for resistance against dust and water. The green illuminated button provides clear visibility, while the 5A current rating and SPST-NO contact configuration ensure efficient performance. With a wide operating temperature range from -55°C to 85°C, this switch is suitable for a variety of applications. Its silver-plated brass contacts and solder termination offer optimal conductivity and longevity. Ideal for industrial and outdoor use, the LP5A71L325 is a high-quality solution for demanding switching needs.
