LP5-A73E223

OTTLP5_A73E223
Heilind Number:OTTLP5-A73E223
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A73E223
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

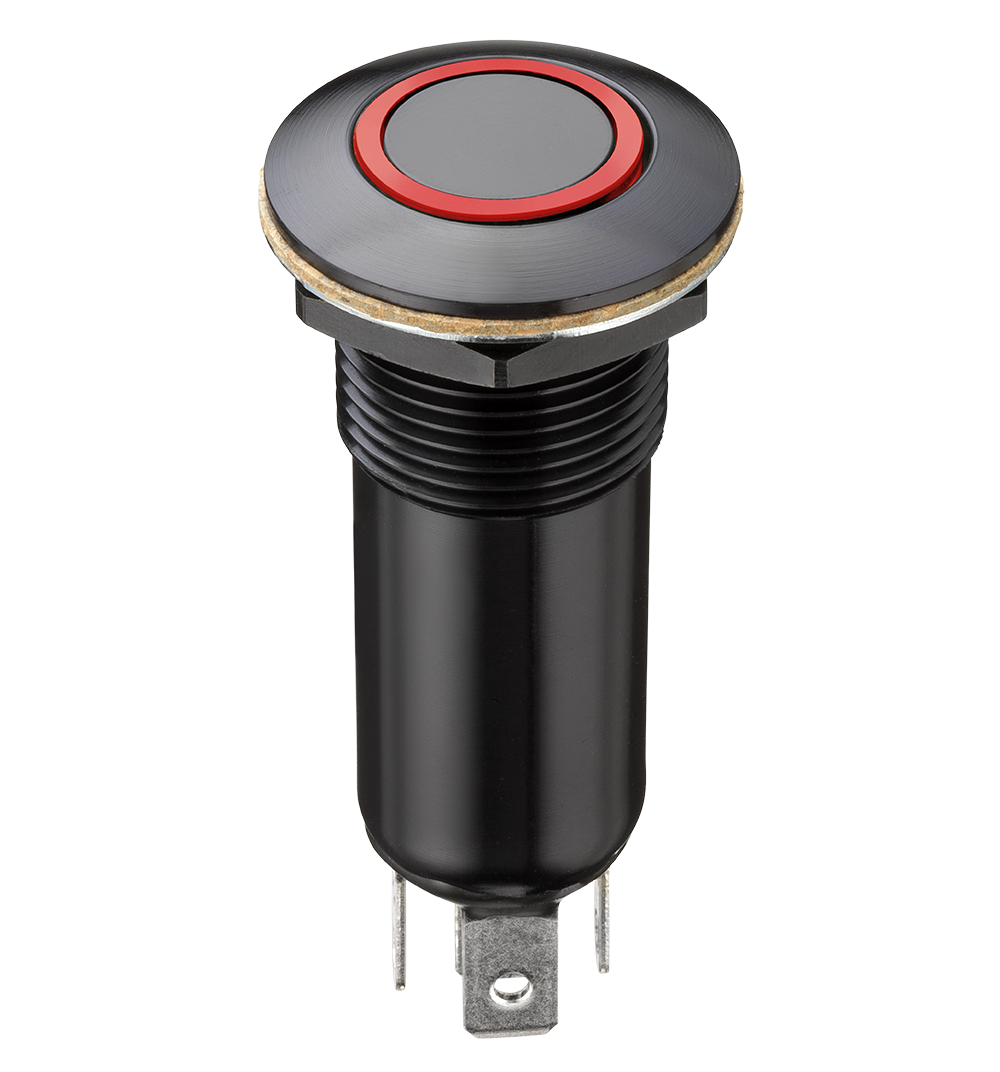

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A73E223
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K4S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Flat)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.1 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):5 VDC
Illumination Color:Green
Illumination Voltage:12 V
SKU:OTTLP5-A73E223

Detailed Description

The LP5-V series pushbutton switch, SKU LP5-A73E223, is a high-quality and durable component designed for various industrial applications. Featuring a sleek black aluminum housing and matching flat round black actuator, this switch is not only visually appealing but also vandal-resistant, ensuring reliable performance in demanding environments. With an IP6K4S rating, it offers protection against dust and water ingress. The illuminated green button, powered by a 12V voltage source, provides clear visual feedback. Operating at temperatures ranging from -55 to 85°C, and with a durability rating of 200,000 cycles, this SPST-NO switch guarantees long-lasting functionality. Ideal for panel mounting, it has a solder termination type and is suitable for both AC (115V) and DC (5V) applications. Perfect for use in hi-rel industrial settings, the LP5-A73E223 is a versatile and dependable choice for your switching needs.
