LP5-A73Q322

OTTLP5_A73Q322
Heilind Number:OTTLP5-A73Q322
Manufacturer:OTTO Controls
Manufacturer Number:LP5-A73Q322
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

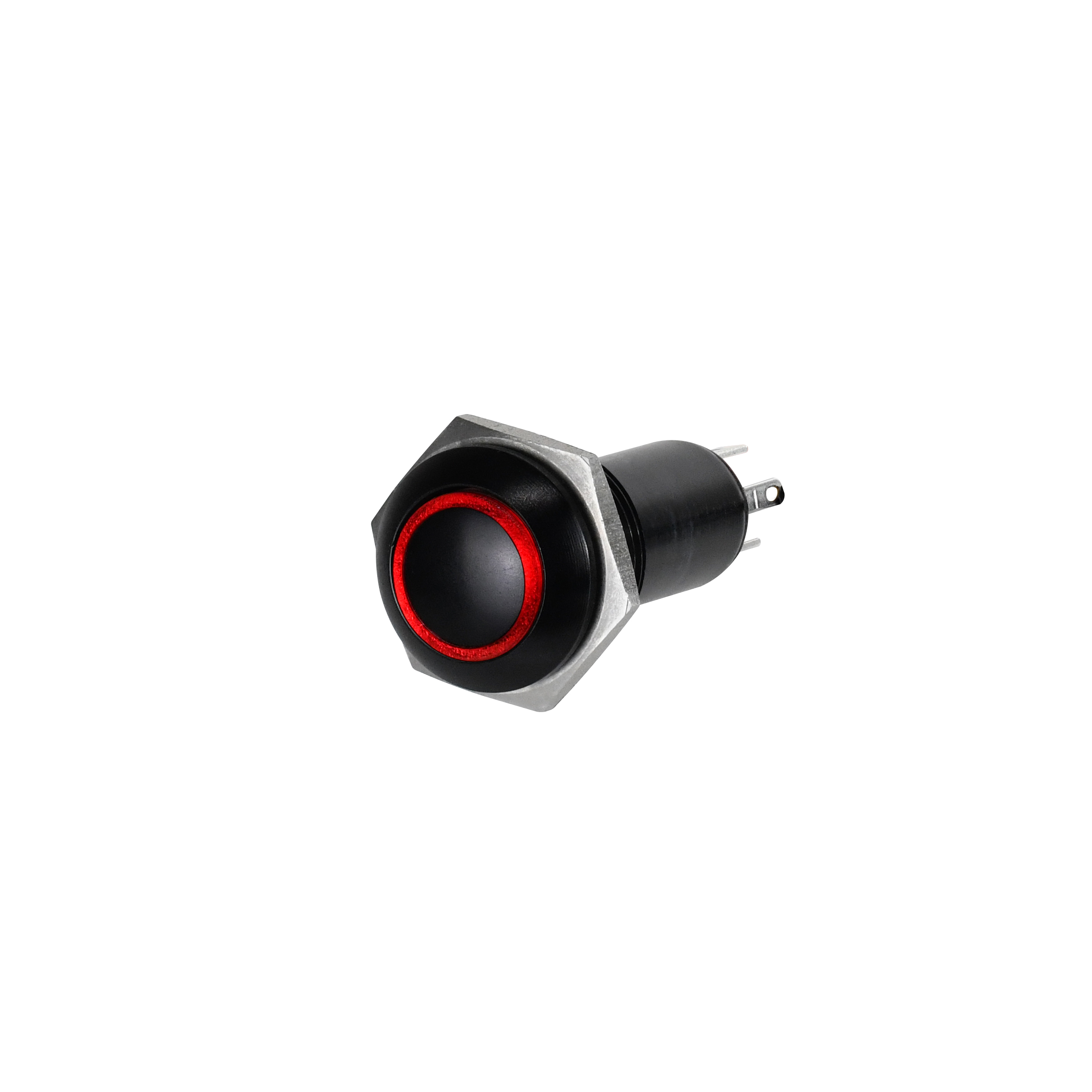

Illuminated, Vandal Resistant, Aluminum, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-A73Q322
Series:LP5-V
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Curved)
Case Color:Black
Actuator Material:Aluminum
Termination Type:Solder
Actuator Shape:Round
Cap Color:Black
Actuator Length:.22 in
Switch Function:Off-On
Type:Sealed
Durability Rating (Cycles):200,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 mA
Voltage Rating (DC):5 VDC
Illumination Color:Blue
Illumination Voltage:12 V
SKU:OTTLP5-A73Q322

Detailed Description

Our LP5-V series push button switch, SKU LP5-A73Q322, is a durable and reliable solution for your control panel needs. Featuring a sleek black aluminum housing and a vandal-resistant design, this switch is perfect for high-traffic or outdoor environments. The illuminated button, with a vibrant blue LED, ensures easy visibility even in low light conditions. With an IP6K8S rating, it is fully sealed against dust and water, making it suitable for a wide range of applications. The off-on switch function and SPST-NO contact configuration provide simple and efficient operation. Gold-plated brass contacts guarantee reliable performance, even after 200,000 cycles. Panel mount installation and solder termination make it easy to integrate into your existing setup. Operating in temperatures ranging from -55°C to 85°C, this switch is built to withstand harsh conditions. Trust the LP5-V series for quality and longevity in your industrial or commercial projects.
