LP5-E1A32R

OTTLP5_E1A32R
Heilind Number:OTTLP5-E1A32R
Manufacturer:OTTO Controls
Manufacturer Number:LP5-E1A32R
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

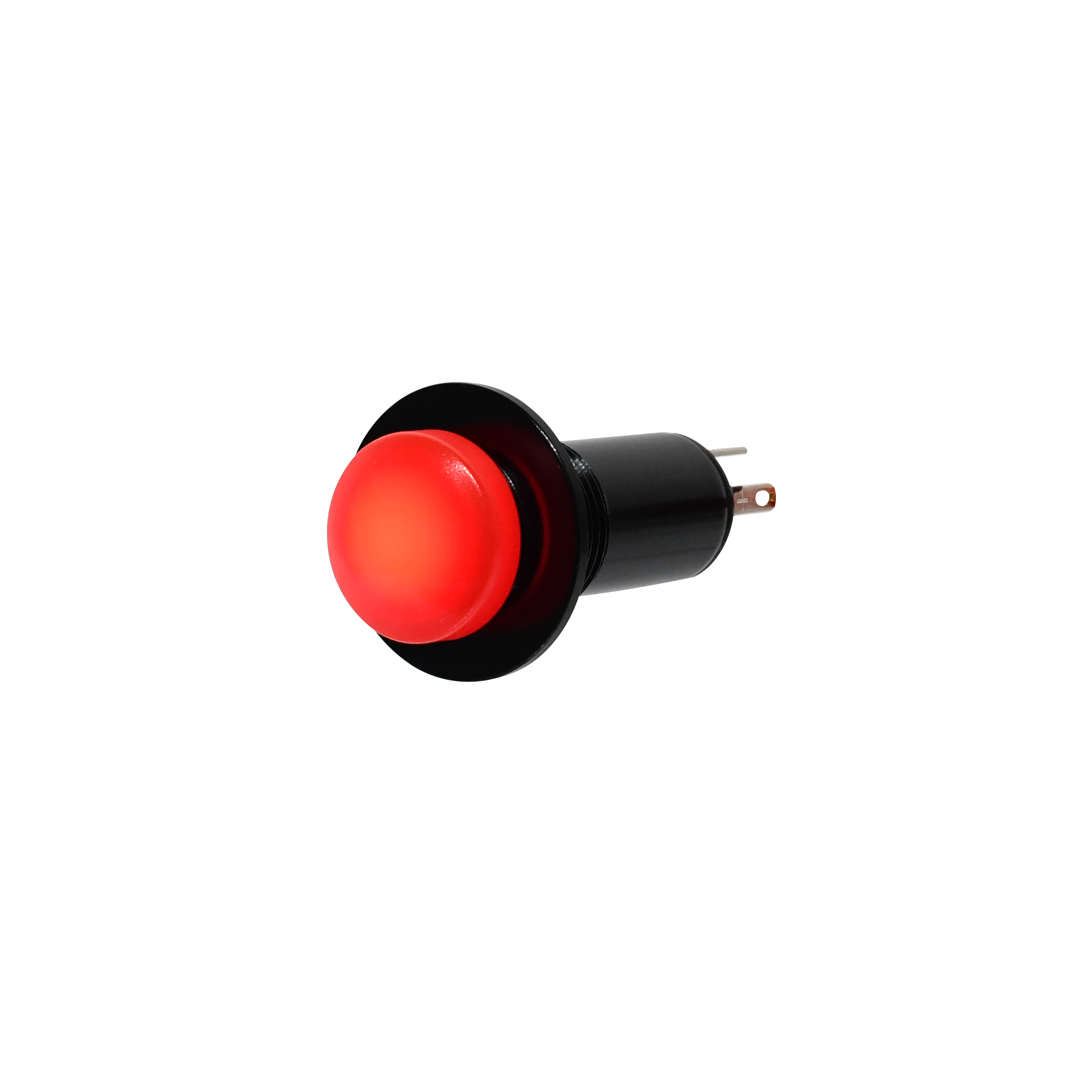

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-E1A32R
Series:LP5
Cap Color:Red - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Silver
Switch Function:Off-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Red
Illumination Voltage:2 V
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-E1A32R

Detailed Description

The LP5 Series Illuminated Alternate Action Pushbutton Switch in Red Translucent with a sleek Black housing is a durable and reliable solution for various applications. Featuring a Round Button Actuator, this panel-mount switch offers a contact configuration of SPST-NO with a current rating of 5A. Its sealed construction, with an IP6K8S rating, ensures protection against dust and water ingress, making it suitable for use in harsh environments. The switch's silver-plated brass contacts and aluminum housing guarantee robust performance with a durability rating of 25,000 cycles. With an illumination voltage of 2V and a voltage rating of 115VAC/28VDC, the Red LED provides clear visual feedback. Operating between -55°C to 85°C, this pushbutton switch is reliable even in extreme temperatures, perfect for industrial and commercial applications where high reliability is essential.
