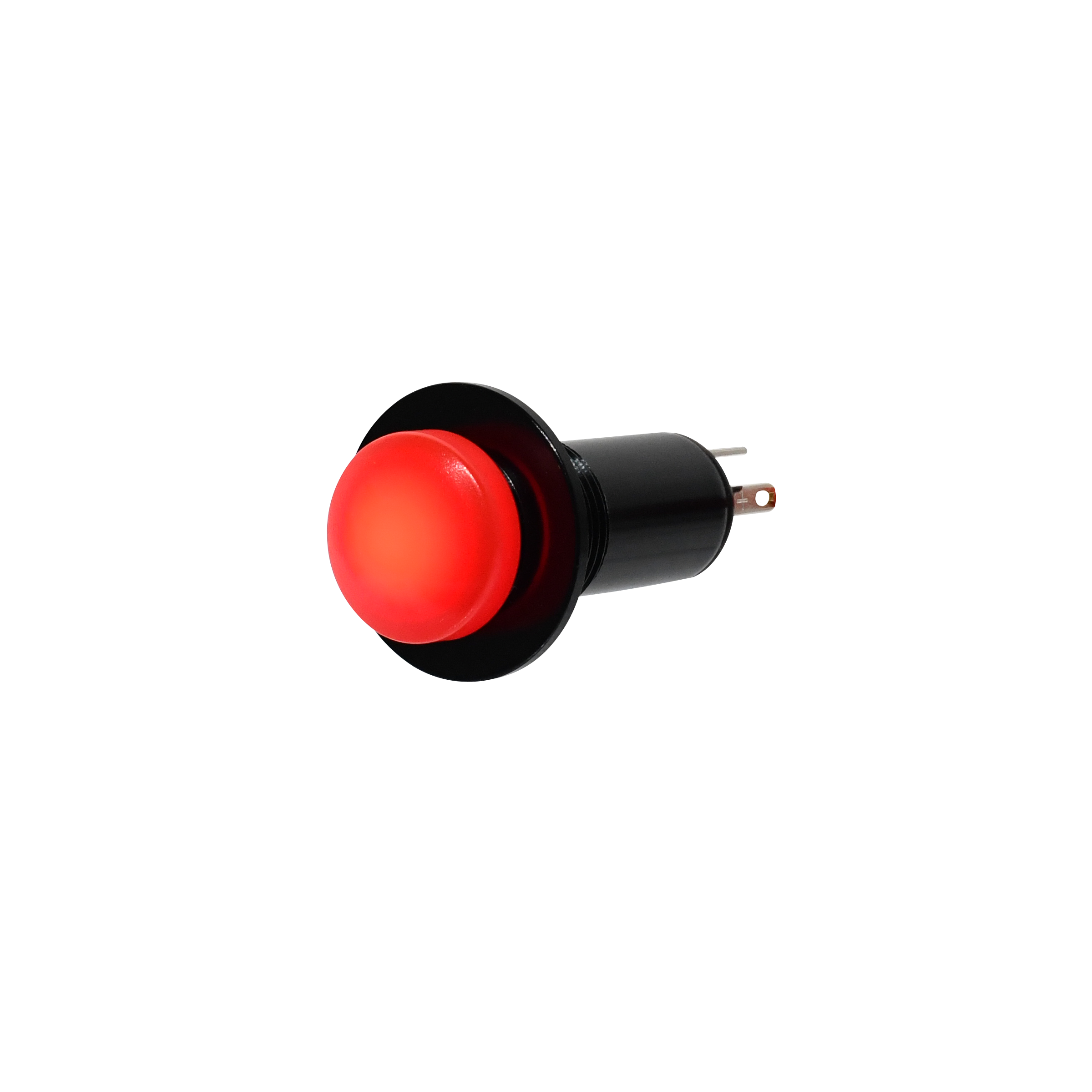

LP5-E2H32W-L3

OTTLP5_E2H32W_L3
Heilind Number:OTTLP5-E2H32W-L3
Manufacturer:OTTO Controls
Manufacturer Number:LP5-E2H32W-L3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Illuminated, Alternate Action Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls LP5-E2H32W-L3
Series:LP5
Cap Color:White - Translucent
IP Rating:IP6K8S
Case Color:Black
Illumination:Illuminated
Actuator Type:Button (Exposed Dome)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.44 in
Contact Plating:Silver
Switch Function:On-On
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Illumination Color:Green
Illumination Voltage:12 V
Contact Configuration:SPDT
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTLP5-E2H32W-L3

Detailed Description

Introducing the LP5 Series Illuminated Alternate Action Pushbutton Switch, SKU LP5-E2H32W-L3. This high-performance switch features a sleek black housing with a white translucent cap, perfect for panel mounting. The exposed dome button, made of durable thermoplastic, offers a comfortable actuation experience. With an IP6K8S rating, it guarantees reliable sealing against dust and water ingress. The green illuminated button, powered by 12V, ensures clear visibility even in low-light conditions. Operating at 115VAC and 28VDC with a current rating of 5A, this switch is suitable for various applications. Its SPDT contact configuration and silver-plated brass contacts provide excellent conductivity. Designed for longevity, it boasts a durability rating of 25,000 cycles. From industrial machinery to consumer electronics, the LP5E2H32WL3 is the ideal choice for precision control.
